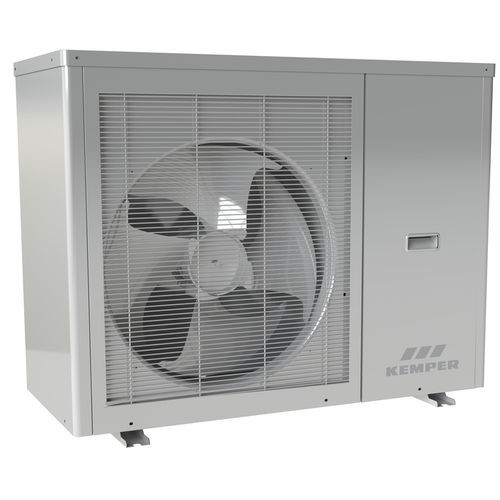

Water chiller 618 01 series

oilcompactair-cooled

for cooling the KHS CoolFlow cold water cooler air-cooled chiller in compact design for outdoor installation for energy-efficient operation of the KHS CoolFlow cold water circulation weatherproof base frame with removable cladding panels made of powder-coated steel, colour similar to RAL 9010 with infinitely variable cooling control modern EC fans and integrated fan control to reduce operating costs and optimally adjust the fan speed to the actual ambient conditions infinitely variable speed regulation through thermal low-noise fan control for particularly low noise emissions standard operating limits from -15°C to +45°C fully hermetic, vibration-damped rotating-piston inverter compressor for infinitely variable adjustment of the compressor frequency, with refrigerator oil filling refrigerant circuit made of refrigerant copper pipe, hermetically sealed and pressure tested at the factory, dried and filled with R410A safety refrigerant controllable via Schrader valve High- and low-pressure control device, filter dryer and electronic expansion valve to increase energy efficiency and improve control quality evaporator as refrigerant-water heat exchanger as tube bundle heat exchanger, vapour-diffusion-tight insulation, return temperature range from +10°C to +20°C insulated medium circuit with manual bleeder valve, differential pressure monitor for monitoring the volume flow, and speed-controlled circulation pump according to the specifications of the Ecodesign Directive medium connections in solid design with one-inch female pipe thread
