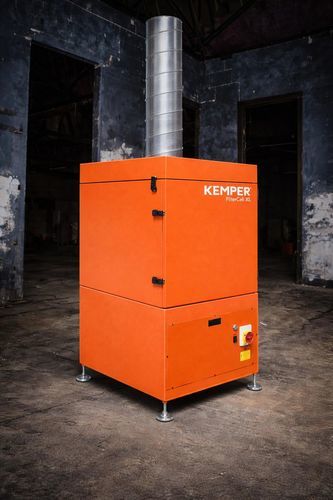

Floor-standing fume extractor FilterCell XL

weldingcartridgewith self-cleaning filter

Short description
Cleanable welding fume extraction unit for welding robots, exhaust hoods and extraction tables.

Overview
The KEMPER FilterCell XL is a stationary extraction filter unit with time-controlled automatic filter cleaning. Designed for continuous operation under high smoke and dust loads, it connects via ducting to hoods, extraction tables and robot cells. The KemTex® ePTFE membrane filter cartridge captures ultrafine particles down to below 0.1 µm.

Applications & processes

• High smoke and particle loads
• Continuous (non-stop) operation
• Exhaust hoods, extraction tables and robot cells
• Welding processes: MIG/MAG, stick welding
• Materials: steel, aluminium, stainless steel

Key highlights

• Time-controlled automatic filter cleaning
• KemTex® ePTFE membrane filter cartridge for ultrafine dust separation
• Captures particles below 0.1 µm
• High occupational hygiene protection
• Compact footprint
• Plug-and-play delivery for easy installation
• Suitable for continuous operation in robot cells, hoods and tables

Technical data (table)
Weight in kg: 155
Dimensions (D) in mm: 655
Dimensions (W) in mm: 655
Dimensions (H) in mm: 1460
Filter stages: 0
Filter area in m²: 10
Separation efficiency in % ≥: 99.9
Motor power in kW: 1.5
Sound pressure level in dB(A): 69
Max. fan capacity in m³/h: 3000
Extraction capacity in m³/h (typical): 1000

Technical characteristics

• Model: FilterCell XL
• Filter cartridge: KemTex® ePTFE membrane (ultrafine, surface filtration)
• Automatic cleaning: time-controlled
• Intended use: duct-connected extraction for hoods, tables and robot cells
• Designed for continuous high smoke/dust loads
• Filter area: 10 m²
• Separation efficiency: ≥ 99.9%
• Motor power: 1.5 kW
• Sound pressure level: 69 dB(A)
• Max. fan capacity: 3000 m³/h
• Extraction capacity (typical): 1000 m³/h
• Weight: 155 kg
• Dimensions (D×W×H): 655 mm × 655 mm × 1460 mm
• Suitable welding processes: MIG/MAG, stick welding
• Compatible materials: steel, aluminium, stainless steel
