Welding fume extractor 65 850 100

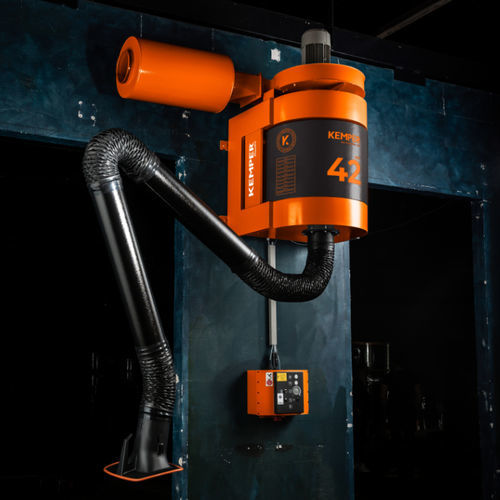

wall-mountedwith in-line filterwith extraction arm

Overview Extraction unit for welding smoke with high capacity and contamination-free filter change. MaxiFil units combine large filter area with secure, contamination-free filter replacement. The comfortable filter system reliably handles applications with medium amounts of smoke and dust. The wall-mounted version is compact and ideal for regular on-site use. W3 (IFA) approval for welding fume filtration permits use with chrome-nickel steels.

Key product information

• Suitable for use with high-alloy steels (e.g. chrome-nickel)
• Medium levels of smoke and dust
• Designed for regular use

Highlights

• Safe operation through rotation-field detection
• Reduced repositioning of the extraction arm thanks to flow-optimised extraction hood
• Increased safety through filter monitoring
• Contamination-free filter change for safe maintenance
• Economical operation due to long-life, high-capacity filters
• Convenient operation via Control-Box

Technical data (table) Weight (kg): 125
Depth (mm): 776
Width (mm): 1533
Height (mm): 1229

Filter (stages): 2
Filter (area m²): 42
Filter (separation efficiency % ≥): 99.5

Technology (motor power kW): 1.5
Technology (rated current A): 3.1
Technology (sound pressure level dB(A)): 72

Performance (max. fan capacity m³/h): 3000
Performance (extraction capacity m³/h): 1000
Performance (max. negative pressure Pa): 3200

Connections (number of extraction arms): 1
Connections (extraction arm diameter mm): 150
Connections (extraction arm length m): 3

Note on filters The original XXL filter with 42 m² filter area fits MaxiFil (mobile and stationary), SmartFil and WallMaster units and provides high separation efficiency with low energy consumption.

Characteristics / technical specifications

• Weight: 125 kg
• Depth x Width x Height: 776 mm x 1533 mm x 1229 mm
• Filter stages: 2
• Filter area: 42 m²
• Separation efficiency: ≥ 99.5 %
• Motor power: 1.5 kW
• Rated current: 3.1 A
• Sound pressure level: 72 dB(A)
• Max. fan capacity: 3000 m³/h
• Extraction capacity: 1000 m³/h
• Max. negative pressure: 3200 Pa
• Number of extraction arms: 1
• Extraction arm diameter: 150 mm
• Extraction arm length: 3 m
