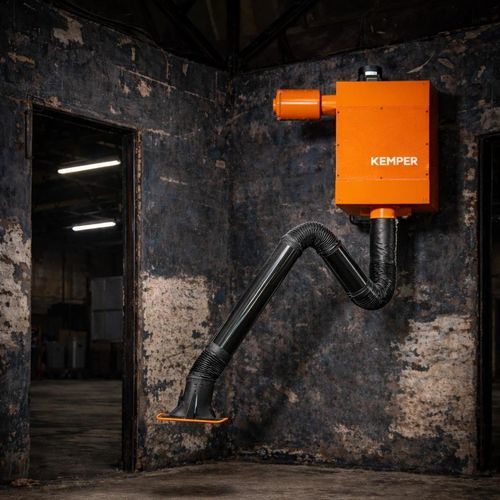

Wall-mounted fume extractor 83 100 100

weldingcartridgewith extraction arm

Product overview
Stationary extraction system with a single articulated extraction arm for continuous operation. Equipped with differential-pressure-controlled automatic filter cleaning and KemTex® ePTFE membrane filter cartridges for ultrafine dust (captures particles < 0.1 µm). A two-arm version with integrated throttle flaps is available for simultaneous or alternating work at two stations.

Highlights

• Designed for large volumes of welding smoke and dust
• Intended for continuous use
• Differential-pressure-controlled automatic filter cleaning
• KemTex® ePTFE membrane filter cartridges with surface filtration for ultrafine particles
• High cost-efficiency and low operating costs
• Low compressed-air consumption due to differential-pressure cleaning
• Flow-optimised extraction hood design reduces repositioning of the extraction arm

Applications / Materials & Welding processes

• Use: regular operation, continuous use
• Welding processes: MIG/MAG, MMA (E-Hand)
• Workable materials: steel, aluminium, stainless steel

Options / Configuration

• Connection types: hose connection or rigid pipe connection
• Selectable extraction arm lengths: 2 m (standard), 3 m, 4 m, 5 m, 6 m, 7 m

Technical data
SKU: 83100106
Weight: 146 kg
Dimensions (D x W x H): 655 mm x 655 mm x 1355 mm
Filter stages: 1
Filter area: 8 m²
Separation efficiency: ≥ 99.9 %
Motor power: 1.5 kW
Rated current: 3.5 A
Compressed air supply: 5–6 bar
Sound pressure level: 71 dB(A)
Max. fan capacity: 3000 m³/h
Extraction capacity: 1200 m³/h
Max. negative pressure: 3000 Pa
Number of extraction arms: 1 (2-arm version available)
Extraction arm diameter: 150 mm
Dust collection container volume: 11 L
Compressed air tank size: 25 L
Extraction arm length (standard): 2 m (other lengths optional: 3–7 m)

Accessories / Recommendations

• Original KemTex® replacement filter cartridges
• Optional start–stop automation, protective grille and work-area lighting
