Fume filter WallMaster

dustcartridgepressure

Short description

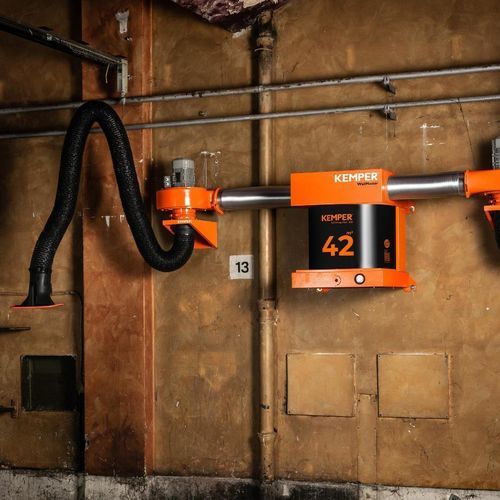

The wall-mounted weld fume filtration system WallMaster is a cost-effective modular solution for extraction systems. The compact housing integrates a wide-area filter medium compatible with both new and existing capture elements. The KEMPER SafeChangeFilter enables contamination-free filter changes and provides a large filter area of 42 m².

Applications / Materials

• Medium smoke / dust volumes
• Modular expansion in combination with capture elements
• One to two workstations
• Use frequency: regular to continuous
• Welding processes: TIG (WIG), MMA (manual/stick)
• Materials: steel, aluminium, stainless steel

Highlights / Benefits

• Contamination-free filter change (KEMPER SafeChangeFilter)
• Large filter area for high capacity and extended service life
• Cost-effective retrofit to existing capture elements
• Robust filter monitoring via manometer
• Integrated lifting device for safe filter handling
• Simple and fast installation

Product features

• Designed for medium smoke/dust loads
• Compact, wall-mounted modular unit
• Integrated wide-area filter medium
• SafeChangeFilter for contamination-free replacement

Technical data

• Model: WallMaster
• SKU: 65750
• Weight: 65 kg
• Dimensions (D x W x H): 715 mm x 765 mm x 795 mm
• Filter stages: 2
• Filter area: 42 m²
• Separation efficiency: ≥ 99.5 %
• Max. volumetric flow: up to 1600 m³/h
• Special features: KEMPER SafeChangeFilter, integrated lifting device, manometer for filter monitoring

Notes
Modular upgradeable and suitable for retrofit to existing capture elements; optimised for medium smoke/dust volumes.
