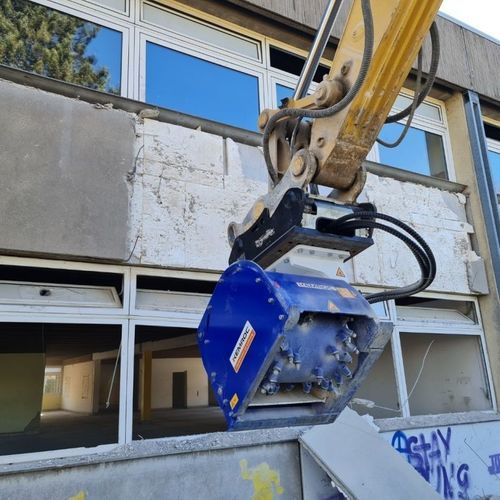

Excavator cold planer EX 70 HD

for asphaltfor concrete

Overview
The KEMROC EX Patch Planers are precision attachments designed for milling asphalt, concrete, bricks, natural stone and similar surfaces. They provide accurate depth control (mechanical or hydraulic), high-torque modifiable hydraulic motors, low vibration operation and integrated water jets with optional vacuum dust extraction ports. EX planers can operate on horizontal, vertical, inclined and overhead surfaces, achieving milling depths up to 190 millimetres and delivering smooth cut edges with fine-grained cut material output.

Benefits

• A rigid support frame with wear resistant slides
• High torque, modifiable hydraulic motor
• Robust housing with low vibration
• Accurate depth control (mechanical or hydraulic)
• Smooth cut edges and fine-grained cut material
• Integrated water jets for dust control; connections for vacuum dust extraction optional

Technical description
The EX range is engineered for versatility and durability to handle the hardest asphalt and concrete as well as masonry and natural stone. Depth control options allow precise milling up to 190 mm. The high-torque, low-vibration design improves surface finish and reduces tool and carrier wear. Water jets support dust suppression and an optional dust suction port can be used for vacuum extraction. The planers are intended for applications such as road repair, house connections, removal of contaminated concrete, tunnel renovation, plaster removal and other renovation/demolition tasks.

Models — key specifications (summary table)
Model | Compatible rotation unit (KRM) | Cutting depth (A) | Cutting force at 350 bar | Cutting wheel diameter (C) | Cutting width (B) | Max. oil flow | Max. operating pressure | Number of picks | Pick box | Rated power | Recommended excavator weight | Recommended oil flow at 100 bar | Recommended rpm | Total weight
EX 20 | KRM20 | 0 – 70 mm (0 – 3 in) | 4 KN (900 lbf) | 360 mm (14 inch) | 200 mm (8 in) | 50 l/min (13 gal/min) | 310 bar | 42 Pcs | PH 14 Type | 22 kW (30 hp) | 1 – 3 t (0 – 5000 lb) | 40 l/min (11 gal/min) | 160 rpm | 165 kg (364 lbs)
EX 20 HD | KRM20 | 0 – 70 mm (0 – 3 in) | 6 KN (1300 lbf) | 360 mm (14 inch) | 200 mm (8 in) | 65 l/min (17 gal/min) | 310 bar (4500 psi) | 42 Pcs | PH 14 Type | 22 kW (30 hp) | 2 – 4 t (5000 – 10000 lb) | 50 l/min (13 gal/min) | 160 rpm | 182 kg (401 lbs)
EX 30 HD | KRM30 | 0 – 120 mm (0 – 5 in) | 15 KN (3400 lbf) | 525 mm (21 inch) | 300 mm (12 in) | 105 l/min (28 gal/min) | 380 bar (5510 psi) | 35 Pcs | PH 20 Type | 30 kW (40 hp) | 5 – 10 t (10000 – 20000 lb) | 80 l/min (21 gal/min) | 110 rpm | 420 kg (926 lbs)
EX 45 HD | KRM30 | 0 – 150 mm (0 – 6 in) | 30 KN (6700 lbf) | 580 mm (23 inch) | 450 mm (18 in) | 180 l/min (48 gal/min) | 380 bar (5510 psi) | 49 Pcs | PH 20 Type | 65 kW (85 hp) | 10 – 16 t (20000 – 35000 lb) | 155 l/min (41 gal/min) | 100 rpm | 730 kg (1609 lbs)
EX 60 HD | KRM30 | 0 – 190 mm (0 – 7 in) | 28 KN (6200 lbf) | 675 mm (27 inch) | 600 mm (24 in) | 200 l/min (53 gal/min) | 380 bar (5510 psi) | 69 Pcs | PH 20 Type | 80 kW (105 hp) | 15 – 23 t (35000 – 50000 lb) | 175 l/min (46 gal/min) | 105 rpm | 1230 kg (2712 lbs)
EX 70 HD | KRM30 | 0 – 190 mm (0 – 7 in) | 53 KN (11900 lbf) | 675 mm (27 inch) | 600 mm (24 in) | 280 l/min (74 gal/min) | 380 bar (5510 psi) | 69 Pcs | PH 20 Type | 80 kW (105 hp) | 18 – 25 t (40000 – 55000 lb) | 250 l/min (66 gal/min) | 80 rpm | 1230 kg (2712 lbs)

Applications

• Repairing asphalt surfaces (roadways, driveways)
• Removal of contaminated concrete surfaces
• Milling asphalt for house and utility connections
• Milling walls and plaster removal
• Tunnel renovation including overhead surfaces
• Renovation of locks and similar infrastructure works

Caractéristiques / spécifications techniques

• Maximum milling depth: up to 190 mm
• Depth control: mechanical or hydraulic options for precise depth adjustment
• Drive: high-torque modifiable hydraulic motors
• Vibration: robust housing and design for low vibration levels
• Dust control: integrated water jets and optional vacuum dust extraction port
• Cut quality: smooth cut edges and fine-grained output to reduce post-processing
• Mounting: compatible rotation units (KRM20 / KRM30 depending on model)
• Materials: designed for hardest asphalt, concrete, bricks, natural stone and similar surfaces
• Orientation: can operate on horizontal, vertical, inclined and overhead surfaces
• Available pick types and pick box configurations as listed per model (PH 14 / PH 20 types)
