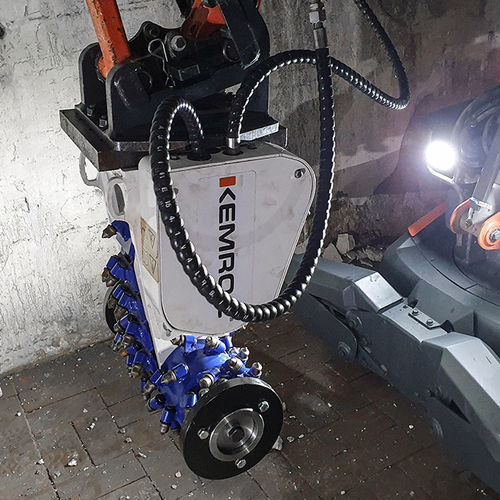

Excavator cold planer EX 20 HDcompactfor asphaltfor concrete
Add to favorites
Compare this product
Characteristics
- Type
- for excavators
- Size
- compact
- Applications
- for asphalt, for concrete
Description
Product overview
Technical data
Applications
Compatibility & installation
Maintenance & consumables
- Excavator-mounted milling head designed for precise removal of asphalt, concrete and surface layers on 2–4 t excavators (5000–10000 lb).
- Compact milling unit for narrow trenches, curb profiling and surface preparation with a 200 mm cutting width.
Technical data
- Recommended excavator weight: 2 – 4 t (5000 – 10000 lb)
- Rated power: 22 kW (30 hp)
- Adjustable cutting depth (A): 0 – 70 mm (0 – 3 in)
- Cutting width (B): 200 mm (8 in)
- Cutting wheel diameter (C): 360 mm (14 in)
- Recommended rpm: 160 rpm
- Recommended oil flow at 100 bar: 50 l/min (13 gal/min)
- Max. oil flow: 65 l/min (17 gal/min)
- Max. operating pressure: 310 bar (4500 psi)
- Torque at 350 bar: 1000 Nm (700 lbf.ft)
- Cutting force at 350 bar: 6 kN (1300 lbf)
- Total weight: 182 kg (401 lbs)
- Pick box: PH 14 Type
- Number of picks: 42 pcs
- Standard pick: 16/28/26/14 H
- Standard hole pattern: LB10
- Compatible rotation unit (KRM): KRM20
Applications
- Asphalt and concrete surface milling, road marking removal, edge and curb profiling, and narrow trench excavation for utilities.
- Suitable for urban repair, rehabilitation and preparation tasks where compact excavation tools are required.
Compatibility & installation
- Compatible with KRM20 rotation unit; standard mounting hole pattern LB10 and pick box PH 14 facilitate replacement and setup.
- Hydraulic requirements: recommended oil flow 50 l/min at 100 bar; ensure excavator hydraulic system can supply up to 65 l/min and withstand 310 bar operating pressure.
Maintenance & consumables
- 42 picks (standard designation 16/28/26/14 H) ensure continuous cutting; pick replacement and inspection recommended based on material abrasiveness and usage.
- Design allows straightforward access to pick box and wear parts to minimize downtime on site.
