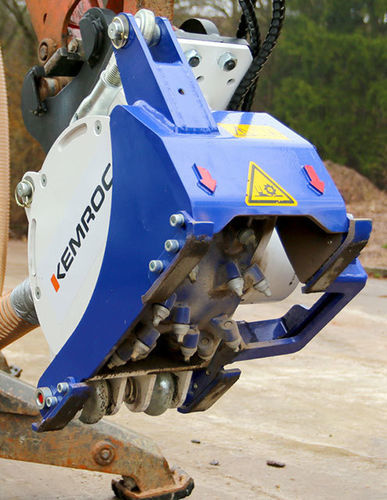

Excavator cold planer EX 45 HD
for asphaltfor concrete

Excavator cold planer - EX 45 HD - KEMROC Spezialmaschinen GmbH - for asphalt / for concrete
Excavator cold planer - EX 45 HD - KEMROC Spezialmaschinen GmbH - for asphalt / for concrete
Add to favorites
Compare this product

Characteristics

Type
for excavators
Applications
for asphalt, for concrete

Description

Product
  • Model: EX 45 HD
  • Product category: EX Patch Planers
  • Brand: KEMROC
  • Designed for precise surface and patch milling on asphalt and concrete; suitable as an excavator attachment for targeted road and pavement repairs


Technical data (selected parameters shown on product page)
  • Recommended excavator weight: 10 – 16 t (20000 – 35000 lb)
  • Rated power: 65 kW (85 hp)
  • Cutting depth, adjustable (A): 0 – 150 mm (0 – 6 in)
  • Cutting width (B): 450 mm (18 in)
  • Cutting wheel diameter (C): 580 mm (23 inch)
  • Recommended rpm: 100 rpm
  • Recommended oil flow at 100 bar: 155 l/min (41 gal/min)
  • Max. oil flow: 180 l/min (48 gal/min)
  • Max. operating pressure: 380 bar (5510 psi)
  • Torque at 350 bar: 8700 Nm (6400 lbf.ft)
  • Cutting force at 350 bar: 30 KN (6700 lbf)
  • Total weight: 730 kg (1609 lbs)
  • Pick box: PH 20 Type
  • Number of picks: 49 Pcs
  • Standard pick: 16/48/32/20 H
  • Standard hole pattern: LB20
  • Compatible rotation unit (KRM): KRM30


Specifications
  • Recommended excavator weight: 10 – 16 t / 20000 – 35000 lb
  • Rated power: 65 kW / 85 hp
  • Cutting depth (adjustable, A): 0 – 150 mm / 0 – 6 in
  • Cutting width (B): 450 mm / 18 in
  • Cutting wheel diameter (C): 580 mm / 23 in
  • Recommended rpm: 100 rpm
  • Hydraulic flow (100 bar recommended): 155 l/min / 41 gal/min
  • Max. oil flow: 180 l/min / 48 gal/min
  • Max. operating pressure: 380 bar / 5510 psi
  • Torque at 350 bar: 8700 Nm / 6400 lbf.ft
  • Cutting force at 350 bar: 30 KN / 6700 lbf
  • Total weight: 730 kg / 1609 lbs
  • Pick box: PH 20 Type — Number of picks: 49
  • Standard pick: 16/48/32/20 H — Standard hole pattern: LB20
  • Compatible rotation unit: KRM30
