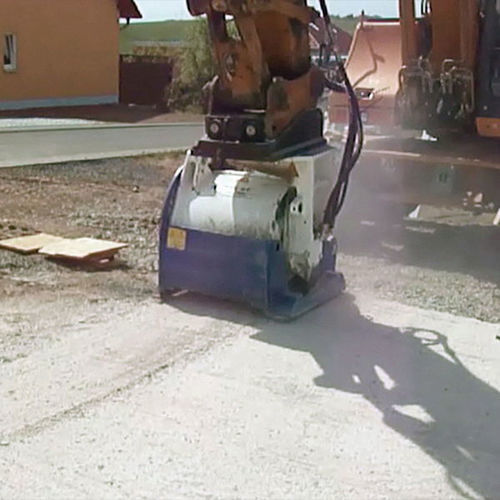

Excavator cold planer EX 60 HD

for asphaltfor concrete

Product name
EX 60 HD patch planer, excavator-mounted milling attachment for localized asphalt and concrete repair

Technical data

• Recommended excavator weight: 15 – 23 t (35000 – 50000 lb)
• Rated power: 80 kW (105 hp)
• Cutting depth, adjustable (A): 0 – 190 mm (0 – 7 in)
• Cutting width (B): 600 mm (24 in)
• Cutting wheel diameter (C): 675 mm (27 in)
• Recommended rpm: 105 rpm
• Recommended oil flow at 100 bar: 175 l/min (46 gal/min)
• Max. oil flow: 200 l/min (53 gal/min)
• Max. operating pressure: 380 bar (5510 psi)
• Torque at 350 bar: 9300 Nm (6900 lbf.ft)
• Cutting force at 350 bar: 28 kN (6200 lbf)
• Total weight: 1230 kg (2712 lbs)
• Pick box: PH 20 Type
• Number of picks: 69 pcs
• Standard pick: 19/48/36/20 H
• Standard hole pattern: LB20
• Compatible rotation unit (KRM): KRM30

Applications

• Localised road, pavement and runway patching
• Removal of asphalt and thin concrete layers prior to repair or resurfacing
• Trench reinstatement and utility repair work

Compatibility & installation

• Designed for mounting on excavators in the recommended weight class; check carrier hydraulic capacity before installation
• Hydraulic requirement: recommended oil flow and operating pressure as listed under technical data
• Replaceable picks and modular pick box simplify maintenance and on-site servicing

Notes
The above values are the technical parameters presented for the EX 60 HD patch planer model. Measurements include both metric and imperial units where provided.
