Excavator cold planer EX 30 HD

small-sizefor asphalt

Product
EX 30 HD is a patch planer cutter attachment for excavators designed for removing asphalt and surface layers. It belongs to the EX series and is intended for small excavator classes; the unit is supplied as a cutter attachment compatible with the KRM30 rotation unit.

Technical data (overview)

• Recommended excavator weight: 5 – 10 t (10000 – 20000 lb)
• Rated power: 30 kW (40 hp)
• Cutting depth, adjustable (A): 0 – 120 mm (0 – 5 in)
• Cutting width (B): 300 mm (12 in)
• Cutting wheel diameter (C): 525 mm (21 inch)
• Recommended rpm: 110 rpm
• Recommended oil flow at 100 bar: 80 l/min (21 gal/min)
• Max. oil flow: 105 l/min (28 gal/min)
• Max. operating pressure: 380 bar (5510 psi)
• Torque at 350 bar: 4100 Nm (3000 lbf.ft)
• Cutting force at 350 bar: 15 KN (3400 lbf)
• Total weight: 420 kg (926 lbs)
• Pick box: PH 20 Type
• Number of picks: 35 Pcs
• Standard pick: 16/48/32/20 H
• Standard hole pattern: LB10
• Compatible rotation unit (KRM): KRM30

Notes

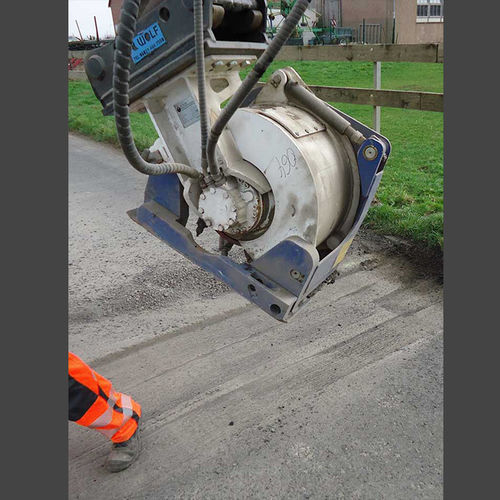

Includes a technical drawing and multiple application images showing the EX 30 HD mounted on various carrier machines. No pricing or EAN is published on the product page.
