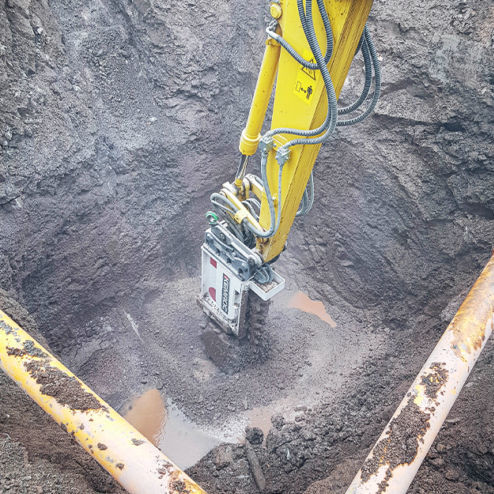

Chain trencher EK 60

for excavatorsfor civil engineering

Product overview
The EK 60 is a high-output excavator chain cutter designed for deep, low-vibration trenching and controlled excavation. Part of the EK Chain Cutters range, it replaces percussive breaking with continuous cutting to provide precise trench geometry and predictable cutting performance. The EK 60 is suitable for soil, asphalt, concrete and rock up to 50 MPa UCS and is intended for 10–17 t class excavators. Configurations support cutting widths of 500 mm or 600 mm and a drum length of 1,600 mm.

Main benefits

• Cutting depth up to 1,600 mm
• Low vibration operation with reduced noise
• Effective on soil, asphalt, concrete and rock up to 50 MPa UCS
• Enables controlled excavation and smooth material removal
• Consistent trench profiles for infrastructure and road works

Design & applications
Engineered for excavators in the 10–17 t class, the EK 60 delivers high cutting power while minimizing uncontrolled fracturing. Typical applications: deep trenching for pipelines and district heating, road construction and rehabilitation, selective excavation in reinforced ground, and trenching in medium-hard rock formations up to 50 MPa UCS.

Key features & technical advantages

• High torque and cutting force for dense soils, reinforced concrete and rock
• Hydraulically optimized for modern excavators with high-capacity systems
• Wear-optimized chain and pick system with robust pick configuration for abrasive materials
• Heavy-duty construction for operational stability and reduced mechanical stress

Caractéristiques / spécifications techniques

• Model: EK 60
• Recommended excavator weight: 10 – 17 t
• Rated power: 60 kW (80 hp)
• Drum cutter length (A): 1600 mm (63 in)
• Cutting depth: up to 1,600 mm
• Cutting width (B): 500 | 600 mm (20 | 40 in)
• Cutter drum diameter (C): 600 mm (24 in)
• Recommended rpm: 80 rpm
• Recommended oil flow: 140 l/min (37 gal/min)
• Maximum oil flow: 195 l/min (52 gal/min)
• Maximum operating pressure: 400 bar (≈5800 psi)
• Torque at 380 bar: 8,800 Nm (≈6500 lbf·ft)
• Cutting force at 380 bar: 29 kN (≈6610 lbf)
• Maximum rock compressive strength: 50 MPa (≈7300 psi)
• Weight: 1,250 | 1,300 kg (≈2,756 | 2,866 lb)
• Pick box type: PH 22
• Number of picks in cutter drums: 40 | 60 pcs (depending on configuration)
• Number of picks in the cutter chain: 53 pcs
• Standard pick: 15/46/38/22 C
• Standard hole pattern: LB20
• Compatible rotation unit (KRM): KRM40
