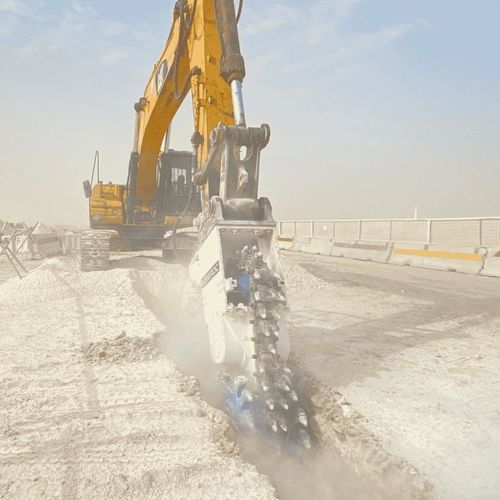

Excavator hydraulic milling cutter EK 110

Overview
The EK 110 Infrastructure Excavator Chain Cutter is a multi-purpose chain cutting attachment for civil engineering projects, engineered for 25–32 t excavators. Based on KEMROC’s chain cutting system, the EK 110 provides controlled continuous cutting at 65 rpm with performance suitable for soils, reinforced concrete and rock up to 80 MPa UCS. It is designed for trenching, selective excavation, profiling and concrete renovation in variable ground conditions.

Key benefits

• Reduces energy consumption by up to 40%
• Handles materials with compressive strengths up to 80 MPa
• Designed for low noise and vibration
• Produces narrow trenches with precise profiles

Performance summary

• Excavator weight class: 25–32 t
• Rated power: 110 kW
• Recommended rotation speed: 65 rpm
• Continuous cutting force: up to 49 kN
• Maximum torque: 19,500 Nm (at 400 bar)
• Recommended oil flow: 250 l/min; maximum oil flow: 300 l/min
• Maximum operating pressure: 400 bar
• Suitable for soil, reinforced concrete and rock up to 80 MPa UCS

Applications

• Infrastructure trenching for utilities, pipelines and cable routes
• Selective excavation and profiling for foundations and corrections
• Mining/quarrying for soft to medium-hard materials where drilling/blasting is impractical
• Concrete renovation and controlled structure cutting
• Underwater and submerged cutting operations (operational without modification)

Technical specifications

• Recommended excavator weight: 25 – 32 t (55,000 – 70,000 lb)
• Rated power: 110 kW (150 hp)
• Drum cutter length (A): 1970 mm (78 in)
• Cutting width (B): 600 | 700 | 800 mm (24 | 28 | 32 in)
• Cutter drum diameter (C): 800 mm (31 in)
• Recommended rpm: 65 rpm
• Recommended oil flow: 250 l/min (66 gal/min)
• Max. oil flow: 300 l/min (79 gal/min)
• Max. operating pressure: 400 bar (5800 psi)
• Torque at 380 bar: 19,500 Nm (14,400 lbf·ft)
• Cutting force at 380 bar: 49 kN (10,950 lbf)
• Max. rock compressive strength: 80 MPa (11,600 psi)
• Weight (variants): 2450 | 2510 | 2620 kg (5,402 | 5,534 | 5,776 lb)
• Pick box type: PH 32 HD
• Number of picks in cutter drums: 28 | 40 | 48 pcs
• Number of picks in cutter chain: 54 pcs
• Standard pick: 17/75/70/30 Q
• Standard hole pattern: LB30
• Compatible rotation unit (KRM): KRM60
