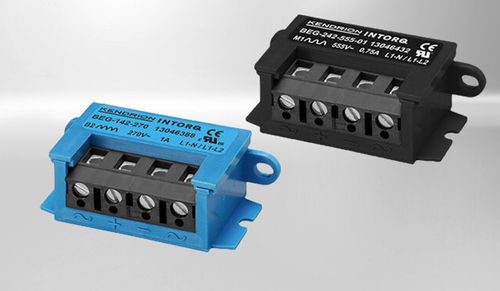

SCR diode rectifier bridge Compact Collection

bridgerectifiervoltage

Overview
The Compact Collection includes compact rectifiers and electronic modules for supplying electromagnetic brakes and clutches. The series is designed for easy installation, reliable brake control, and UL-certified use in the US market.

Advantages

• Compact design for easy integration
• Bridge and half-wave rectifiers available
• Two input voltage ranges depending on version
• Overvoltage protection at input and output
• Wide temperature range from -40°C to +80°C
• Quick function identification through INTORQ color coding
• UL / CSA approval depending on model

Application Areas

• Electromagnetic brakes
• Electromagnetic clutches
• Industrial brakes
• Brake motors
• Machinery and plant engineering
• Drive systems with compact brake control

Key Technical Data

• Model series: Compact Collection
• Product type: bridge and half-wave rectifiers
• Input voltage: 0…270 V or 0…555 V
• Output voltage: 0.9 × U1 or 0.45 × U1
• Output current: 1 A
• Temperature range: -40°C to +80°C
• Mounting: with or without snap hook
• Certification: UL-certified
