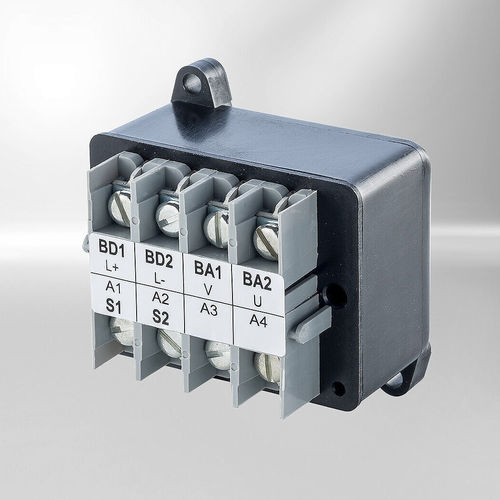

SCR diode rectifier bridge Standard Collection

standardswitchingrectifier

Overview
The Standard Collection includes intelligent rectifiers for controlling electromagnetic brakes and other electromagnetic devices. It enables fast switching, supports overexcitation, and is especially suitable for more powerful brakes from size 14 upwards.

Advantages

• Energy savings of up to 75%
• Fast switch-off through current, voltage, or auxiliary contact detection
• Overexcitation function for fast brake release
• Suitable for more powerful brakes
• Easy installation in the motor terminal box
• Different versions available depending on switching and control requirements

Application Areas

• Electromagnetic brakes
• Industrial brakes
• Brake motors
• Electromagnetic devices
• Drive systems with fast brake control
• Applications with higher brake power from size 14 upwards

Key Technical Data

• Model series: Standard Collection
• Product type: overexcitation, hybrid, and high-performance rectifiers
• Function: rectification, overexcitation, and fast switch-off
• Input voltage: up to 690 VAC, depending on version
• Output voltage: 0.89 × Uin / 0.445 × Uin
• Output current: up to 4.0 A, depending on version
• Overexcitation time: 0.3 s or 0.25 s to 15 s, depending on version
• Connection: leads or terminals
