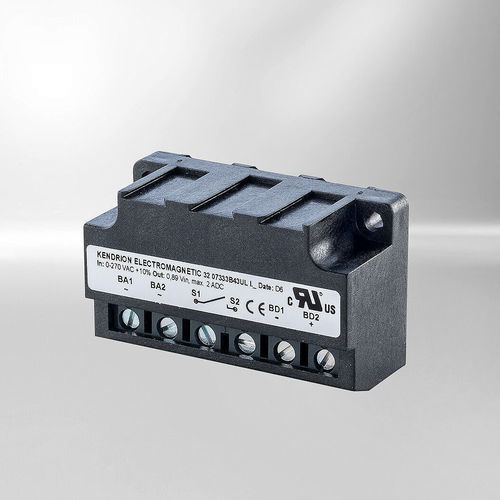

DIN rail diode rectifier bridge Universal Collection

rectifieruniversalAC

Overview
The Universal Collection includes single-phase rectifiers for controlling electromagnetic brakes, brake motors, and medium-power electromagnets. It is versatile and, depending on the version, offers bridge, half-wave, combined, or overexcitation functions.

Advantages

• Universal use for brakes and electromagnets
• Bridge and half-wave rectification possible
• Versions with fast switch-off available
• Internal limitation of induction voltage during DC-side fast switch-off
• Can be installed in terminal boxes of brake motors
• Accessories for different mounting options, including DIN rail mounting
• Encapsulated versions for extended operating temperature ranges

Application Areas

• Electromagnetic brakes
• Brake motors
• Medium-power electromagnets
• Industrial brakes
• Machinery and plant engineering
• Drive systems with rectifier control

Key Technical Data

• Model series: Universal Collection
• Product type: single-phase rectifier
• Versions: bridge/half-wave rectifier, combined rectifier, overexcitation rectifier
• Rated input voltage: up to 500 VAC, one version up to 415 VAC
• Output voltage: Uin × 0.89 / Uin × 0.445
• Output current: up to 3.0 A overexcitation / 1.5 A holding operation, depending on version
• Fast switch-off: depending on version via auxiliary contact, voltage detection, or current detection
• Connection: terminal
• Overexcitation time: 0.25 s to 1.1 s, depending on version
