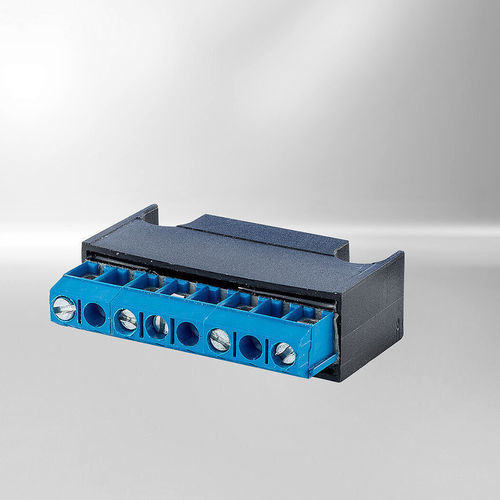

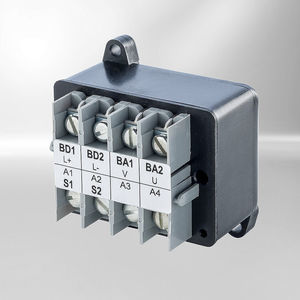

PN junction diode rectifier bridge Lean Collection

bridgerectifierAC

Overview
The Lean Collection includes small, cost-effective half-wave and bridge rectifiers for controlling spring-applied brakes. It is especially suitable for installation in small terminal boxes of brake motors and is available with or without fast switch-off, depending on the version.

Advantages

• Small, space-saving design
• Cost-effective rectifier solution
• Available with or without fast switch-off via auxiliary contact
• Different mounting and connection options
• Suitable for spring-applied brakes up to size 16
• Can be installed in small terminal boxes

Application Areas

• Spring-applied brakes
• Brake motors
• Small terminal boxes
• Applications with low dynamic requirements
• Machinery and plant engineering
• Drive systems with simple brake control

Key Technical Data

• Model series: Lean Collection
• Product type: half-wave and bridge rectifiers
• Versions: with or without fast switch-off
• Rated input voltage with fast switch-off: half-wave up to 415 VAC / bridge up to 250 VAC
• Rated input voltage without fast switch-off: up to 500 VAC
• Output voltage: Uin × 0.89 / Uin × 0.445
• Output current with fast switch-off: bridge 1 A / half-wave 1 A
• Output current without fast switch-off: bridge 2.0 A / half-wave 1.0 A

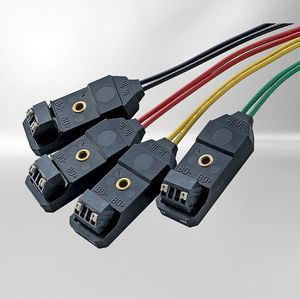

• Connections: terminal or leads
