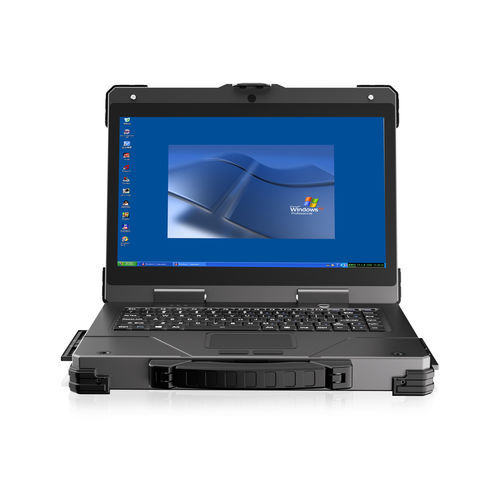

Intel Core i7 laptop computer RGD-LTP-BX1400U-EEG

Intel® Core i5-1235UWindows 11rugged

Overview

The RGD-LTP-BX1400U-EEG is a 14-inch rugged laptop built for outdoor and extreme-environment field operations. It pairs long battery life, wide cellular connectivity and a full-aluminum-alloy housing to ensure operational continuity and data security in demanding applications.

Key features

• Rugged design meeting MIL-STD-810H with 1.2 m drop resistance.
• Cellular support 2G/3G/4G/5G with integrated GPS and fingerprint authentication.
• High-brightness FHD 14" display (1000 cd/m²); optional 10-point capacitive touch with Corning Gorilla Glass and glove-touch support.
• Intel CPU options: i5-1235U standard, i7 available; DDR5 16 GB memory and up to 1 TB M.2 PCIe SSD.
• Long-life 11.1 V 8000 mAh battery and full-aluminum housing for mechanical durability.

Technical specifications

• Material: Full aluminum alloy
• Dimensions: 340 × 260 × 48 mm (excluding handle wrap angle)
• CPU: Intel i5-1235U (i7 optional), TDP 15W, 10 cores / 12 threads, base 1.4 GHz, max 4.4 GHz
• Memory: DDR5 16 GB, 4800 MHz
• Storage: 1 TB SSD (M.2-2280, PCIe supported)
• OS: Windows 11 Pro
• Display: 14" FHD 16:9, 1920 × 1080, brightness 1000 cd/m²
• Touch panel: Optional 10-point capacitive (G+G) with Corning Gorilla Glass; hardness >7H; scratch-resistant; glove touch supported
• Camera: Front 5.0 MP
• Battery: 11.1 V, 8000 mAh long-life
• Audio: Built-in speakers 8 Ω / 1 W ×2; internal microphone ×1

Connectivity & I/O

• Wi‑Fi: WiFi 6 (802.11ac/ax); Bluetooth 5.1
• Wireless: 2G / 3G / 4G / 5G, GPS
• Security: Fingerprint authentication
• Interfaces: USB 2.0 ×1, USB 3.0 ×2, USB Type-C, HDMI 2.0, RJ45 Gigabit, DB9 (RS232), 3.5 mm audio jack, DC 19V (∮5.5 mm) power, anti-theft lock slot
• Indicators: camera, power, battery (dual-color), caps lock, airplane mode

Ruggedness & environmental

• Compliance: MIL-STD-810H
• Drop resistance: 1.2 m
• Operating temperature: -20 °C to 60 °C
• Storage temperature: -30 °C to 70 °C
• Humidity: 95% non-condensing

Options & configurations

• Color options: Army green / Ice grey / Navy grey / Black
• Keyboard: US layout with backlight (other layouts optional)
• CPU, storage and memory configurable at order (i7, larger SSD)
• Adapter: AC input 100–240 VAC, DC19V / 4.74A (90 W) included
