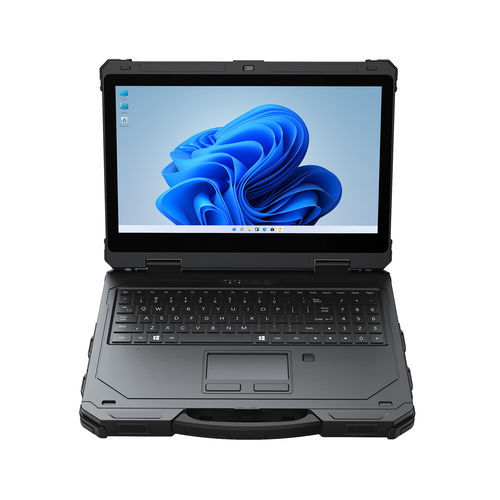

NVIDIA GeForce laptop computer RGD-LTP-Y5000

Windows 11ultra-ruggedEMC

Overview
Rugged laptop RGD-LTP-Y5000 designed for industrial and field applications. Integrated 512GB PCIe SSD, 15.6″ TFT LCD (1000 nits) with 1080p or 4K options, internal plus removable battery (11.1V, 6800mAh) and Windows 11 preinstalled. Configurable for computing and connectivity needs required on-site.

TECHNICAL SPECIFICATIONS
Processor options: 13th Gen Intel® Core™ (i5-13420H / i7-13620H / i9-13900H). GPU options: NVIDIA RTX3060M 12GB / NVIDIA 3070M 16GB. Memory: 16GB DDR4 standard, configurable to 32GB/64GB/128GB. Storage: integrated 512GB PCIe SSD (optional 512GB / 1TB / 2TB). Display: 15.6″ TFT LCD, 1000 nits, 1080p or 4K. Touch: optional capacitive multi-touch and stylus support. Camera: 5MP ×1. OS: Windows 11. Battery: internal + removable (11.1V, 6800mAh). Power adapter: 300W (100-240VAC, 50/60Hz).

Environmental adaptability
Protection: IP65 certified. Compliance: MIL-STD-810H. Operating temperature: -20°C to +60°C. Storage temperature: -55°C to +85°C. Humidity: 5%–95% RH (non-condensing). Designed for harsh-environment operation and mobile field use.

Features / Technical specifications

• Display: 15.6″ TFT LCD, 1000 nits, 1080p/4K options
• Touchscreen: Optional capacitive multi-touch; optional capacitive stylus support
• Camera: 5MP ×1
• Operating System: Windows 11
• Battery: Internal + removable (11.1V, 6800mAh)
• Power adapter: AC 300W (100-240VAC, 50/60Hz)
• CPU: Intel 13th Gen (i5-13420H / i7-13620H / i9-13900H)
• GPU: NVIDIA RTX3060M 12GB / NVIDIA 3070M 16GB
• Memory: 16GB DDR4 (configurable to 32/64/128GB)
• Storage: Integrated 512GB PCIe SSD (options: 512GB / 1TB / 2TB)
• I/O: DC In ×1; USB 3.0 ×2; USB 2.0 ×1; LAN (RJ45) ×2; Audio In/Out ×1; HDMI 2.0 ×1; Type-C (USB+DP) ×1; Serial (RS232/485/422) ×1; TF card slot ×1; SIM card slot ×1
• Keyboard: LED backlit membrane with numeric keypad
• Touch control: Touchpad with left/right buttons
• Audio: Built-in stereo speakers and microphone
• LED indicators: Power, charging, HDD activity, caps lock
• Connectivity: Wi‑Fi 6 and Bluetooth 5.2; GPS / BeiDou; 4G / 5G cellular
• Security: Fingerprint reader ×1; TPM 2.0 support
• Color: Black
• Dimensions: 380 × 273 × 39.5 mm (excluding handle, corner bumpers, protrusions)
• Weight: Approx. 3.5 kg
• Environmental: IP65; MIL-STD-810H; Operating temp -20°C to +60°C; Storage temp -55°C to +85°C; Humidity 5%–95% RH (non-condensing)
