Intel® Core™ i7-12700H laptop computer RGD-LTP-AX1703U-0010

NVIDIA GeForceWindows 10Linux® Ubuntu™

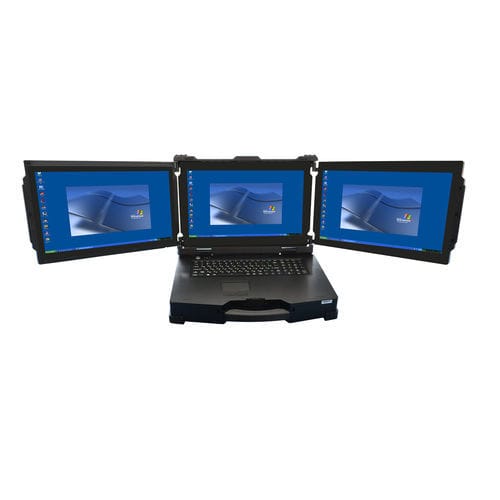

Product overview: The RGD-LTP-AX1703U-0010 is an industrial portable workstation with three 17.3-inch Full HD displays (3×1920×1080). It integrates an Intel i7-12700H 14-core/20-thread processor, supports MXM graphics modules and includes a built-in 20000mAh battery for extended field operation. Engineered for harsh environments with surface IP65 protection and designed to meet MIL-STD-810H criteria.

Key features:

• Intel 14-core / 20-thread processor (i7-12700H) with MXM standalone support
• Built-in 20000mAh battery and integrated keyboard with touchpad
• Three 17.3-inch 1920×1080 displays for multi-view workflows
• IP65 surface protection and MIL-STD-810H environmental robustness
• Aluminum alloy chassis, available in Black or Army Green

Technical specifications:

• Processor: Intel i7-12700H, 14 cores, 20 threads, 2.7GHz base, 4.7GHz turbo
• Memory: DDR5 32GB ×2 (64GB total)
• Storage: 512GB NVMe SSD (expandable via 2 × M.2 slots)
• Battery: 20000mAh internal
• Graphics: MXM 1050 4GB VRAM (optional)
• Display: 3 × 17.3" (1920×1080)
• Wireless: Wi‑Fi standard, optional 4G module
• Audio: Built-in stereo speakers (2)
• Ports: 2 × USB 3.0, 2 × USB Type-C, 2 × RJ45 (Gigabit), 1 × HDMI
• Other I/O: 2 × RS232, 1 × headphone jack, 1 × DC 19V (aviation) power input, 1 × SIM slot
• OS: Windows 10 / 11 / Linux supported
• Environmental: IP65 (surface), operating -40℃ to +50℃, storage -45℃ to +55℃, humidity 10%–90% non-condensing
• Material: Aluminum alloy
• Compliance: Designed to meet MIL-STD-810H (temperature, vibration, shock, salt spray, fungus)

Recommended applications:

• Field engineering and diagnostics
• Mobile control stations and command interfaces
• On-site testing, inspection and measurement
• Military, defense and rugged outdoor operations
• Industrial automation and process monitoring

Options & customization:

• Optional MXM GPU upgrades (e.g., MXM 1050 4GB)
• Configurable memory and storage (additional M.2 modules)
• Optional 4G cellular modem and wireless variants
• Colour options: Black or Army Green; other custom finishes on request
