Intel® Core™ i series portable computer workstation RGD-LTP-CY-703

NVIDIA GeForceWindows 11Windows 10

Product Name
RGD-LTP-CY-703

Overview

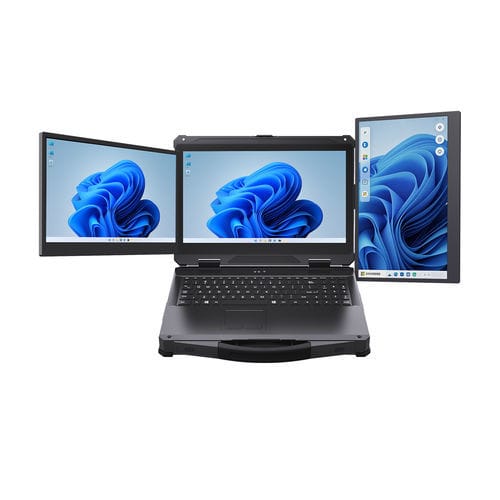

• Rugged portable workstation with triple 15.6-inch high-brightness Full HD (1920×1080) displays designed for field and industrial applications.
• Ruggedized all-aluminum chassis with optional MIL-STD-810H and MIL-STD-461G compliance and pry-resistant keyboard option.
• Hot-swap capable battery options, advanced networking and multiple storage interfaces for on-site operations.

Detailed Technical Specifications
Display: 15.6-inch ×3 high-brightness Full HD LCD, 1920×1080
Operating System: Windows 10 / Windows 11
Battery: Standard 6600mAh Li-ion; pull-out compartment; optional dual hot-swap configuration
Power Adapter: AC 100–240V input, DC 19V output
CPU: Intel Core i9-13900HK (14 cores, up to 5.4GHz)
GPU: NVIDIA RTX 3070M 16GB discrete GPU
Memory: 16GB DDR4 (dual-channel SODIMM, up to 64GB)
Storage: 512GB SSD standard; 2× M.2 2280 slots (SATA 3.0 / PCIe x4 NVMe)
Network: Intel I255 2.5G Ethernet (WOL, PXE)
I/O: 2× USB 3.0, 1× USB 2.0, 2× RJ45, 1× HDMI, 1× USB‑C (DP1.4, 4K@60Hz, USB 3.2), 1× COM (auto RS232/RS485/RS422), 3.5mm combo audio
Keyboard: IP65/IP67 waterproof scissor switch keyboard with white backlight, integrated touchpad and numeric keypad (MIL‑STD options available)
Dimensions: approx. 380 × 273 × 59.8 mm (excluding bumpers and handle)
Weight: approx. 8 kg
Chassis: All-aluminum alloy

Environmental Adaptability
Operating temperature: -20°C to +55°C (optional -40°C to +60°C)
Storage temperature: -40°C to +65°C
Humidity: 5%–95% RH (non-condensing)
Protection: IP65 rated; vibration and shock resistant

Key Features / Technical Specifications

• Triple 15.6-inch high-brightness Full HD displays (1920×1080)
• Windows 10 / Windows 11 support
• 6600mAh pull-out Li-ion battery (optional dual hot-swap)
• Intel Core i9-13900HK CPU; NVIDIA RTX 3070M 16GB GPU
• 16GB DDR4 RAM (up to 64GB); 512GB SSD standard; 2× M.2 2280 slots
• Intel I255 2.5G Ethernet (WOL, PXE)
• Comprehensive I/O: USB 3.0/2.0, dual RJ45, HDMI, USB-C DP1.4, COM port
• IP65 protection, all-aluminum chassis, vibration/shock resistance
• Dimensions ~380 × 273 × 59.8 mm; weight ~8 kg
