Optical measurement system TM-X5000 series

distancefor industrial applicationsfor calibration

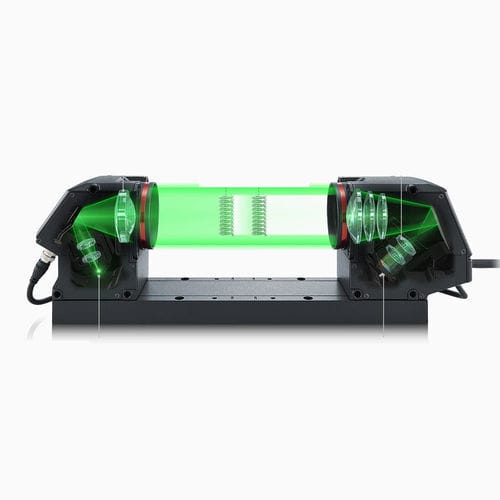

Silhouette-Based Analysis for Guaranteed Accuracy Fast and accurate inline measurement. • Calibrated high-speed measurement • Resistant to target misalignment • Simple configuration, advanced capability TM-X5000 Series telecentric measurement systems provide fast and accurate measurements by capturing the silhouette of a target. The dual telecentric optical systems provide reliable results inline by delivering focused images over a large depth of field. This design, in combination with the low-distortion lenses and proprietary algorithms, enables accurate measurements anywhere in the field of view, eliminating the need for precise target placement, external lighting, or even on-site calibration. The user-friendly system can be configured in 3 simple steps and includes over 100 tools for measurement and inspection, including GD&T, master comparison, and defect distance detection. Large ø120 mm ø4.72" field of view model now available There are 4 models that can be selected based on the requirements of the application from the compact and ultra-high precision model with a diameter of 6mm to the ultra-wide field of view model with a diameter of 120mm.
