Linear position sensor CS-L series

non-contactmagneticdigital output

Overview

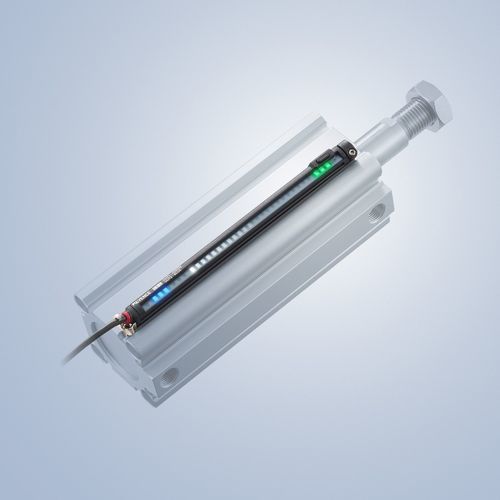

The CS-L series is a linear pneumatic cylinder sensor that provides visible, live piston position indication via a full-length bar LED. It enables top-down installation without cylinder disassembly and fast configuration using a 2-point push-button teach. The sensor supplies piston position and impact-level data to support diagnostics and cycle-time optimization.

Main features

• Full-length bar LED delivers live piston position visibility.
• Simple 2-point teach (push-button) for quick setup with no alignment needed.
• Top-down mounting allows installation/removal without disassembling the cylinder.
• Outputs piston position and impact (shock) level for diagnostics and process control.
• Standard: 2 outputs per sensor; optional 3rd output and advanced configuration via a high-functionality amplifier.

Details
The CS-L uses a visible bar LED to display piston position with fine resolution. Installation is performed from above into the cylinder groove, avoiding cylinder disassembly. Settings are created with a 2-point teach button and can be locked to prevent accidental changes. The sensor reports impact-level and stroke/time information to aid in early fault detection and process improvement. Wiring supports loose wires or M8 connectors; note that certain functionality requires the PNP M8 connector type. A separate high-functionality amplifier accessory enables adjustable set-point windows, the creation of a third output, remote configuration for hard-to-reach installations, and can be disconnected after setup if required.

Applications / Use cases

• Real-time piston position monitoring for process setup and troubleshooting.
• Position-based control or interlocks using taught set points.
• Machine diagnostics using impact-level and stroke-time outputs.
• Situations where cylinder removal for sensor installation is impractical.

Technical specifications

• Series / Model: CS-L series
• Visible indication: full-length bar LED (live piston position)
• Position resolution (reported): 1 mm
• Teach method: 2-point teach (button-based)
• Installation: top-down mounting (no cylinder disassembly required)
• Outputs: 2 outputs standard; optional 3rd output via high-functionality amplifier
• Amplifier functions: adjustable set-point window, ability to create a 3rd output, remote configuration for hard-to-reach installations; amplifier may be disconnected after setup
• Connector / wiring: supports loose wiring or M8 connectors (certain functions require PNP M8 type)
• Diagnostics: impact level and stroke/time information for performance monitoring
