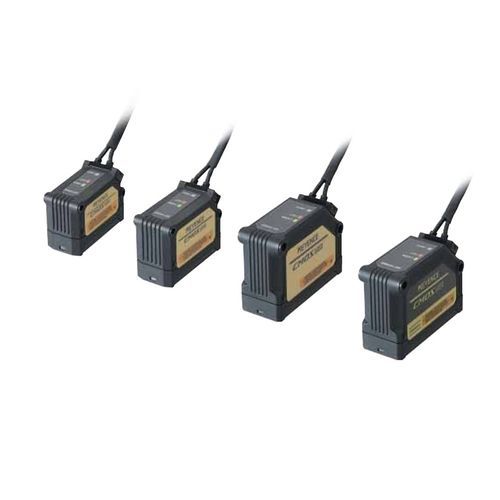

CMOS laser displacement sensor GV series
linearnon-contactdigital

CMOS laser displacement sensor - GV series - Keyence - linear / non-contact / digital
CMOS laser displacement sensor - GV series - Keyence - linear / non-contact / digital
CMOS laser displacement sensor - GV series - Keyence - linear / non-contact / digital - image - 2
CMOS laser displacement sensor - GV series - Keyence - linear / non-contact / digital - image - 3
CMOS laser displacement sensor - GV series - Keyence - linear / non-contact / digital - image - 4
CMOS laser displacement sensor - GV series - Keyence - linear / non-contact / digital - image - 5
CMOS laser displacement sensor - GV series - Keyence - linear / non-contact / digital - image - 6
CMOS laser displacement sensor - GV series - Keyence - linear / non-contact / digital - image - 7
CMOS laser displacement sensor - GV series - Keyence - linear / non-contact / digital - image - 8
CMOS laser displacement sensor - GV series - Keyence - linear / non-contact / digital - image - 9
CMOS laser displacement sensor - GV series - Keyence - linear / non-contact / digital - image - 10
CMOS laser displacement sensor - GV series - Keyence - linear / non-contact / digital - image - 11
CMOS laser displacement sensor - GV series - Keyence - linear / non-contact / digital - image - 12
CMOS laser displacement sensor - GV series - Keyence - linear / non-contact / digital - image - 13
CMOS laser displacement sensor - GV series - Keyence - linear / non-contact / digital - image - 14
CMOS laser displacement sensor - GV series - Keyence - linear / non-contact / digital - image - 15
CMOS laser displacement sensor - GV series - Keyence - linear / non-contact / digital - image - 16
Add to favorites
Compare this product

Characteristics

Type
linear
Contact / non-contact
non-contact
Technology
CMOS laser
Output signal
digital
Measurement object
metal
Protection class
IP67
Other characteristics
rugged
Measuring range

Min.: 20 mm
(0.79 in)

Max.: 1,000 mm
(39.37 in)

Measuring rate

Min.: 10 Hz

Max.: 55 Hz

Power consumption

Min.: 1.6 W
(0 hp)

Max.: 2.2 W
(0 hp)

Supply voltage

Min.: 10 V

Max.: 30 V

Ambient temperature

Min.: -10 °C
(14 °F)

Max.: 50 °C
(122 °F)

Description

Digital CMOS Laser Sensor provides unmatched performance, even on metal and black (rubber) targets. Multiple models available to meet all your laser sensing needs. Stable Detection of Metal Targets Stable Detection of Black Targets (Rubber) Ultra-Long Range up to 1m (39.37") Tough, Rugged: IP-67 Enclosure Rating
