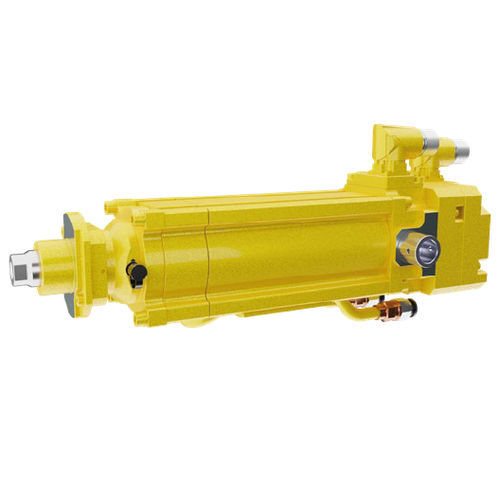

Electric servo-actuator DA78 serieslinearroller screwrobust
Add to favorites
Compare this product
Characteristics
- Type
- electric
- Movement
- linear
- Technology
- roller screw
- Protection class
- IP65, robust
- Applications
- for welding applications
- Other characteristics
- compact, high-performance
- Stroke
150 mm
(5.906 in)- Force
Max.: 13,000 N
Min.: 0 N
- Torque
Max.: 13.8 Nm
(10.178 ft.lb)Min.: 0 Nm
(0 ft.lb)- Motor power
Max.: 1,000 W
(1.36 hp)Min.: 0 W
(0 hp)- Speed
650 mm/s
- Operating Temperature
Max.: 40 °C
(104 °F)Min.: 5 °C
(41 °F)
Description
Ultralight and compact welding servo actuator
DA78s are roller screw electric actuators specially designed for ultralight welding guns.
With the minimal weight of only 6.1 kg, these actuators can generate high forces of up to 13 kN.
DA78 has shown excellent performance in those projects of car body manufacturers, where workshop space is limited requiring high equipment density.
Options
Force sensor
Electric brake
Built-in water cooling
Built-in Anti-Rotation
Radial Load Support
Manual drive
Advantages
High performance & welding quality
Robust design and reliability
Best-in-class lifetime
Simple maintenance
