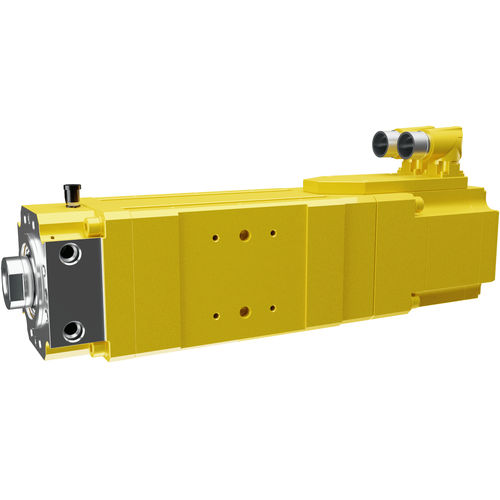

Electric servo-actuator DA 99 serieslinearroller screw400 V
Add to favorites
Compare this product
Characteristics
- Type
- electric
- Movement
- linear
- Technology
- roller screw
- Voltage
- 400 V, 230 V
- Protection class
- IP65, robust
- Applications
- for robots, for welding applications, spot welding
- Other characteristics
- high-performance, with brake, wide, with sensor option, heavy-duty, flange, trunnion
- Stroke
Max.: 310 mm
(12.205 in)Min.: 170 mm
(6.693 in)- Force
10,000 N, 22,000 N
- Speed
Max.: 0.75 m/s
Min.: 0 m/s
(0 ft/s)- Operating Temperature
Max.: 50 °C
(122 °F)Min.: 0 °C
(32 °F)
Description
DA99s are compatible with most of industrial robots and control systems, and can be easily installed in any type and model of welding guns. A wide range of options allow to configure the most suitable servo actuator for specific welding cell requirements
Options
Force sensor
Electric brake
Built-in water cooling
Built-in Anti-Rotation
Radial Load Support
Manual drive
Advantages
High performance & welding quality
Robust design and reliability
Best-in-class lifetime
Simple maintenance
Technincal data
Screw lead - 5 mm/rev - 12.5 mm/rev
Basic dimensions - 99x99mm (cross section), 362 mm (length)
Force repeatability - ±3%
Base weight - 13.5 kg
Service life - 25+ million weld cycles
Maintenance - grease adding once in 15 million cycles
Mounting - front flange / trunnions / side mounting
Feedback sensor - depends on robot type: resolver or absolute encoder
