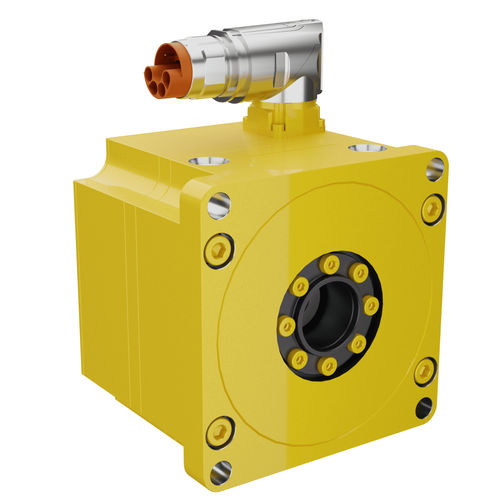

Electric actuator DA 108robustIP54for gate valves
Add to favorites
Compare this product
Characteristics
- Type
- electric
- Protection class
- IP54, robust
- Applications
- for gate valves
- Other characteristics
- compact, precision
- Stroke
18 mm
(0.709 in)- Force
Max.: 5,000 N
Min.: 0 N
- Speed
Max.: 0.08 m/s
Min.: 0 m/s
(0 ft/s)
Description
DA108 is a compact electric actuator for gate valves of hot runner systems. The actuator is designed for medium or large gates with a pin up to 10 mm. High force, speed and precision in a compact design with a hollow rod of DA108 allows to create highly competitive electric hot runners for sequential gating, family mold and multicomponent co-injection.
Options:
Built-in water cooling
Hollow shaft for easy pin replacement
Single connector cable
Technincal data:
Parametr - Value
Repeatability - 0.01 mm
Base dimensions - 108x108x90.5
Base weight - 3.6 kg
Ambience temperature range - up to 360°C
Service life - 1+ million cycles
Maintenance - Lifetime lubrication
Cooling - built-in water cooling
Feedback sensor - absolute encoder
