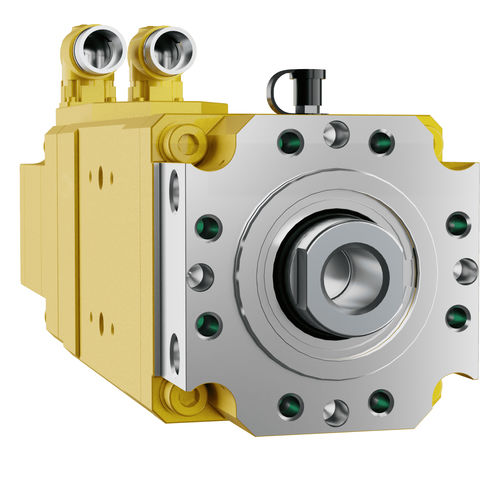

Electric actuator DA 99-D22

linearroller screw400 V

DA99 actuators have proven themselves for positioning the plunger of adhesive and sealant dosing units. The compact and high-precision DA99 roller screw actuators are capable of delivering forces up to 24 kN. The optimized roller screw design and hardening technology ensure high reliability and long service life of the actuator. Options Actuator rod as a plunger Digital nameplate Grease nipple for simple maintenance Advantages High maximal and rated force High level of control over the dosing process Digital nameplate Technincal data Parametr - Value Peak force (for 1 second) - 24 000 N Screw lead - 2.5 mm/rev Base dimensions - 99x99mm (cross section), 350 mm (length) Base weight - 13 kg Service life - 25+ million weld cycles Maintenance - grease adding through lubrication port Mounting - front flange / side mounting Feedback sensor - absolute encoder
