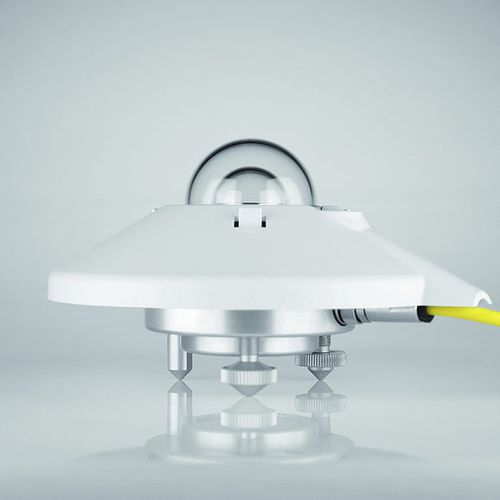

Class A pyranometer CMP10x

4-20 mAISO 9060spectrally flat

Product overview
The CMP10x is an analog pyranometer meeting ISO 9060:2018 and IEC 61724-1:2021 standards. Designed for high-accuracy solar irradiance measurement in harsh and long-term monitoring environments, it combines a thermopile sensor with a built-in thermistor for body temperature monitoring and compensation. The CMP10x offers low instrument drift, a maintenance-free desiccant with >10 year lifetime, a robust 4-pin connector and a recommended 5-year calibration interval. The instrument is supplied with a 5-year warranty and proven field lifetimes exceeding 10 years.

Key features

• ISO 9060 spectrally flat Class A
• Analog thermopile output
• Body temperature monitoring (thermistor) for temperature compensation
• Low instrument drift and long-term stability
• Maintenance-free desiccant (>10 year lifetime)
• Robust 4-pin connector
• Optimized cost of ownership for scientific and PV monitoring
• 5-year full warranty and proven lifespan >10 years

Specifications (from product table)
Spectral range (50% points): 285 to 2800 nm
Sensitivity: 7 to 16 µV/W/m²
Response time (95%): <5 s
Zero offset A: <±7 W/m²
Zero offset B: <±2 W/m²
Directional response (up to 80° with 1000 W/m² beam): <±10 W/m²
Temperature dependence of sensitivity (-10 °C to +40 °C): <±1 %
Operational temperature range: -40 °C to +80 °C
Maximum solar irradiance: 2000 W/m²
Field of view: 180 °

Applications

• Scientific solar irradiance measurements and meteorological networks
• Photovoltaic (PV) monitoring and plane-of-array (POA) measurements when mounted appropriately
• Long-term monitoring in extreme climate conditions

Technical specifications

• Compliance: ISO 9060:2018, IEC 61724-1:2021
• Spectral range (50% points): 285–2800 nm
• Sensitivity: 7–16 µV/W/m² (analog thermopile output)
• Response time (95%): <5 s
• Zero offsets: A <±7 W/m²; B <±2 W/m²
• Directional response (up to 80° at 1000 W/m²): <±10 W/m²
• Temperature dependence of sensitivity (-10 °C to +40 °C): <±1 %
• Operational temperature range: -40 °C to +80 °C
• Maximum irradiance: 2000 W/m²
• Field of view: 180°
• Thermistor for body temperature monitoring and temperature compensation
• Maintenance-free desiccant (lifetime >10 years) and 5-year recommended calibration interval
• Robust 4-pin connector; proven lifespan >10 years and 5-year warranty
