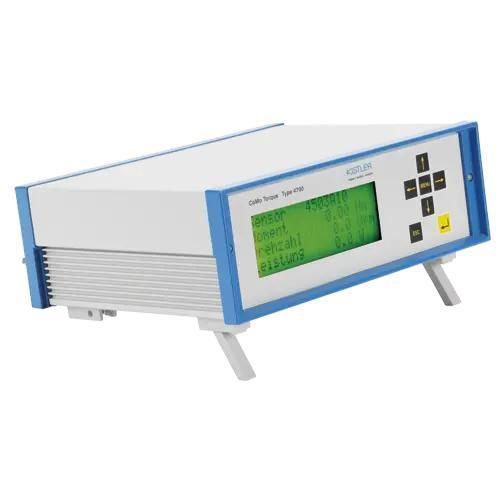

Torque verification tool 4700BP000

Overview
Plug-and-play evaluation instrument for strain-gauge torque transducers (voltage or frequency output). Suitable for acquisition, display and calculation of statistical characteristics and mechanical power. Remote control via USB or RS-232.

Main features

• Plug-and-play evaluation for strain-gauge torque transducers (voltage or frequency output)
• High measuring rate: 10 kHz
• Accuracy: <0.05%
• Acquisition and display of statistical characteristics and mechanical power calculation
• Remote control via USB or RS-232

Technical data
Measuring ranges

• Measuring rate: 10 kHz

Product type

• Torque transducer outputs: ±5, ±10 VDC

Metrological characteristics

• Min./max. peak detection: 1 ms
• Strain-gage full-bridge sensitivity: 0.5 … 3.5 mV/V (4-/6-wire)

Electrical properties

• Reaction on threshold exceeding: 1 ms
• Sensor supply inputs: 5 V

Dynamical properties

• Torque transducer frequency capability: ≤300 kHz

Operation and installation

• Operating temperature range: -10 … 60 °C
• Torque transducer supply: 24 V
• Input power: 100 … 240 VDC, 50 … 60 Hz
• Applications: in- and end-of-line testing for production processes

Interfaces

• USB, RS-232 (remote control); communication port: approx. 115 kbps

Dimensions and materials

• Width: 260 mm
• Height: 2U (rack units)
• Casing material: aluminium

Technical specifications

• Product name: Evaluation instrument CoMo Torque
• Model: 4700BP000
• ID (internal): 18014166
• Measuring rate: 10 kHz
• Accuracy: <0.05%
• Peak detection: 1 ms
• Sensitivity: 0.5 … 3.5 mV/V
• Sensor supply: 5 V
• Torque transducer outputs: ±5, ±10 VDC
• Frequency capability: ≤300 kHz
• Operating temperature: -10 … 60 °C
• Torque transducer supply voltage: 24 V
• Input power: 100 … 240 VDC, 50 … 60 Hz
• Interfaces: USB, RS-232; comm port ≈115 kbps
• Dimensions: width 260 mm; height 2U
• Casing: aluminium
