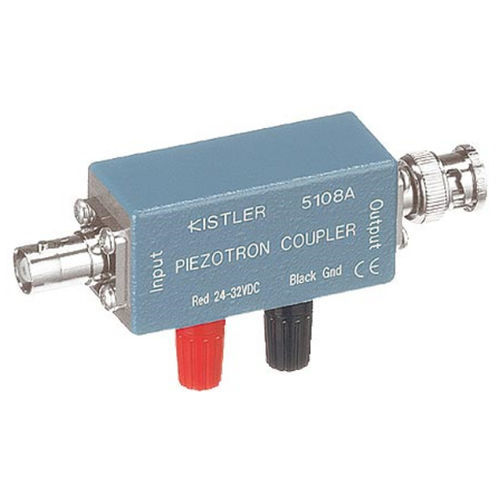

Analog signal conditioner 5108A

single-channelwith DC power supplyfor piezoelectric transducers

Product overview
Laboratory IEPE (Piezotron) coupler model 5108A, 1-channel, designed for external DC supply. Device for signal conditioning of IEPE sensors with stainless steel housing and reverse polarity protection.

Main features

• 1-channel coupler powered by an external DC voltage source
• Simple operation
• Reverse polarity protection

Technical data (summary)

• Electrical properties: Output signal type — Voltage; Input type — IEPE (Piezotron)
• Dynamical properties: Maximum signal frequency — 87 kHz; Time constant — Short
• Operation and installation: Device usage — Signal conditioning
• Interfaces: Number of channels — 1
• Dimensions and materials: Casing material — Stainless steel (1.4435)

Additional information
ID: 18029500

Technical specifications

• Model: 5108A
• Output signal type: Voltage
• Input type: IEPE (Piezotron)
• Maximum signal frequency: 87 kHz
• Time constant: Short
• Device usage: Signal conditioning
• Number of channels: 1
• Casing material: Stainless steel (1.4435)
• Power: External DC voltage source (1-channel coupler)
• Protection: Reverse polarity protection
• Operation: Simple operation
