Voltage preamplifier 5030A1
chargeconditioninganalog

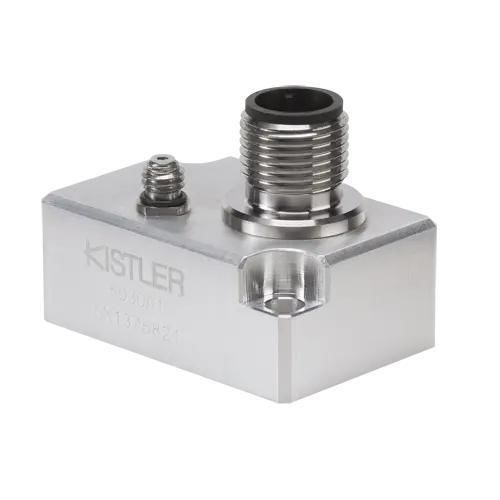

Voltage preamplifier - 5030A1 - KISTLER - charge / conditioning / analog
Voltage preamplifier - 5030A1 - KISTLER - charge / conditioning / analog
Voltage preamplifier - 5030A1 - KISTLER - charge / conditioning / analog - image - 2
Add to favorites
Compare this product

Characteristics

Type
voltage, charge
Secondary function
conditioning
Other characteristics
analog, single-channel, quasi-static, voltage output, miniature
Voltage

Max.: 10 V

Min.: -10 V

Frequency

Max.: 10,000 Hz

Min.: 0 Hz

Description

Product overview
  • Industrial miniature charge amplifier MiniAmp, low range (±1000 pC), model 5030A1, product ID 18004441
  • Two switchable measuring ranges: ±1000 pC and ±100 pC
  • Charge input: KIAG 10-32 (negative)
  • Analog output ±10 V, bandwidth up to 10 kHz


Key technical details
  • Linearity: <±0.05 %FSO
  • Output signal type: Analog, Voltage
  • Input type: Quasi-static charge
  • Maximum signal frequency: 10 kHz
  • Time constant: Long
  • Number of channels: 1


Technical specifications
  • Model family: MiniAmp
  • Model / type: 5030A1
  • Measuring ranges: ±1000 pC (low) / ±100 pC (high)
  • Charge input connector: KIAG 10-32 (negative)
  • Output: ±10 V (analog), bandwidth up to 10 kHz
  • Linearity: <±0.05 %FSO
  • Time constant: Long
  • Channels: 1


Applications and usage
  • Intended use: Process monitoring
  • Typical applications: Spot welding process monitoring, semiconductor manufacturing
  • Suitable for industrial test and measurement systems requiring miniature charge amplification


Ordering & availability
  • Product ID: 18004441
  • Availability: On request
  • Price: On request
