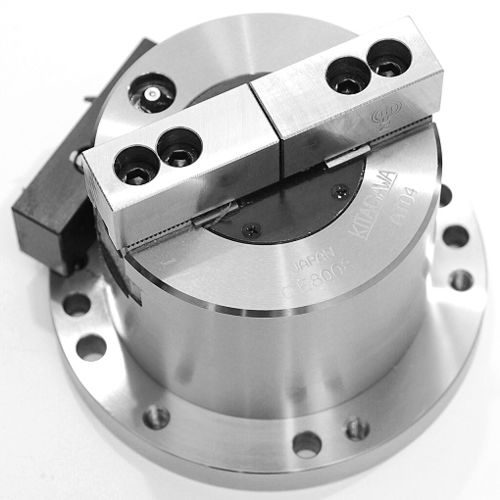

Pneumatic gripper AT series

soft2-jawfor workpieces

Overview
110 mm 2-Jaw work gripper with built-in air cylinder. High precision and high gripping force enable stable machining and cutting operations.

Key Features

• Jaw Stroke Diameter (mm): 5.2
• Gripping Diameter (mm): Min 9 — Max 110
• Gripping Force (kN): 7.5 (at Pneumatic 0.6 MPa)
• Weight (kg): 6.9 (with Soft Top Jaws)
• Max. Pneumatic Pressure (MPa): 0.6
• Matching Soft Jaw: SB04A1T (Standard / Extra Tall)
• Air Consumption (N): 0.40 (Under Pressure 0.6 MPa, plunger stroke per 10 mm)

Further Information

• Clamping force varies depending on jaw configuration and workpiece geometry.
• Air consumption is specified at 0.6 MPa per 10 mm plunger stroke.

Product Specifications

• Model range: AT04 | AT06 | AT08 | AT10
• Jaw Stroke (Diameter) (mm): 5.2 | 5.2 | 6.3 | 6.3
• Gripping Force (kN) (at Pneumatic 0.6 MPa): 7.5 | 21 | 33 | 48
• Gripping Diameter Max. (mm): 110 | 165 | 210 | 254
• Gripping Diameter Min. (mm): 9 | 31 | 41 | 61
• Net Weight (kg) (with Soft Top Jaws): 6.9 | 15 | 26.7 | 40.8

Technical specifications

• Model: AT04
• Designation: 110 mm 2-Jaw work gripper with built-in air cylinder
• Matching Soft Jaw: SB04A1T (jaw-mounting bolts not included)
• Air data: Air consumption 0.40 N (under Pressure 0.6 MPa, plunger stroke per 10 mm)
• SKU: at04
• Availability: In stock
