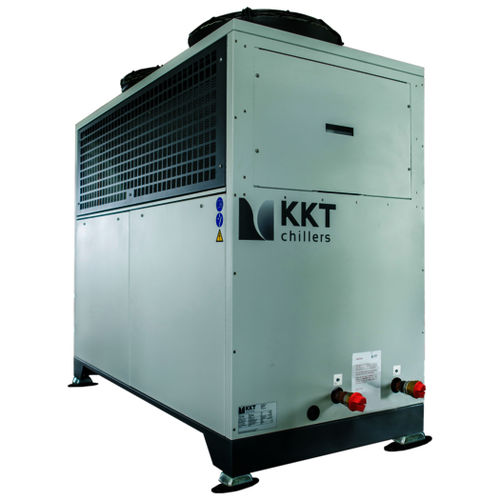

Water chiller OPTI CLC MED series

industrialsmall

Healthcare chiller solutions The energy efficient chiller "OCLC MED“ are developed and produced for cooling medical imaging, which could be used at an ambient temperature from -40°C up to +55°C. Developed in Germany – made in China: The OCLC MED is the first chiller series specifically designed for the asian market and manufactured directly in Suzhou. Redundancy: Dual compressors allows continuous cooling of the helium compressor if one compressor failed. Cost efficient during repairs: Due to the newest micro-channel technology and the high efficient refrigerant R410A the amount of refrigerant required is minimal. Precise in temperature: Thanks to an electronic expansion device temperature-control of +/- 2K is achievable, even under part load conditions and sudden load variations. No corrosion of the condenser coil even installed near the ocean! Small footprint due to the newest micro-channel technology Less weight, more space and improved serviceability: The water circuit is a pressurized, closed loop circuit without a buffer tank. Maximum uptime: Dual pump supports scanner uptime, and eliminates concerns regarding unplanned downtime if one pump fails. For simplified operation, optional switch over cabinet and remote control panel could be provided.
