Storage construction site cabin TRENDLINE

glazedmodularfor public space

Product description

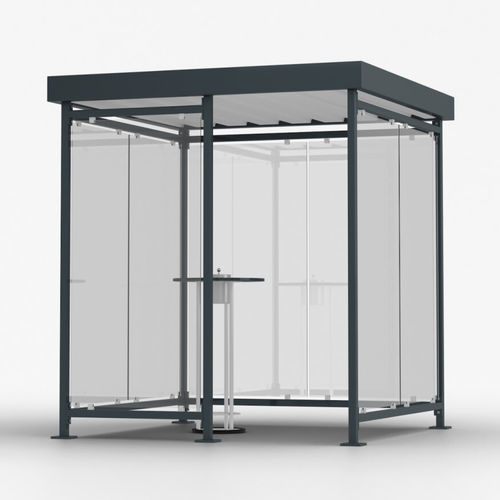

The TRENDLINE canopy from KLEUSBERG is designed for outdoor installation and is suitable as a break shelter or smoking shelter. Wind protection panels are made of tempered safety glass and the slim steel construction provides a protected, naturally lit area.

Design & variants
Available in multiple variants and configurations. Examples of model variants:

• Canopy R5 – for up to 5 persons: length 2,177 mm, height 2,540 mm, depth 2,177 mm.
• Canopy R7 – for up to 7 persons: length 3,192 mm, height 2,540 mm, depth 2,177 mm.
• Canopy R10 – for up to 10 persons: length 4,294 mm, height 2,540 mm, depth 2,177 mm.

Drainage
Drainage is via a continuous parapet with integrated bituminized gutter and can be connected to the existing drainage network if required.

Installation

• Installation at finished floor level (OKF) ±0 mm
• Installation below finished floor level (overpaving)

Material & finish
The steel construction is hot-dip galvanized, pre-treated (swept) and powder-coated, finished in RAL7016. Wind protection panels are made of tempered safety glass.

Optional accessories (excerpt)

• Warm white LED lighting
• Infrared heaters
• Solar lighting
• Benches
• Bicycle racks
• Lean benches
• Foundation plates
• Decorative glass according to customer specification
• Green roofing
• Combined ashtray/waste unit (galvanized steel sheet, RAL7016, freestanding)
• Standing table in stainless steel with Werzalit tabletop and central ashtray
• Waste container in galvanized steel sheet RAL7016, fixed

Characteristics / technical specifications

• Product series: TRENDLINE
• Glass: wind protection panels in tempered safety glass
• Construction: steel construction, hot-dip galvanized, pre-treated (swept), powder-coated
• Finish color: RAL7016
• Drainage: continuous parapet with integrated bituminized gutter (connection possible)
• Available model dimensions (excerpt): R5 (2,177 x 2,177 x 2,540 mm H), R7 (3,192 x 2,177 x 2,540 mm H), R10 (4,294 x 2,177 x 2,540 mm H)
• Delivery: factory-assembled as a kit (for the listed models)
• Application areas: break shelter, smoking shelter, outdoor protection
