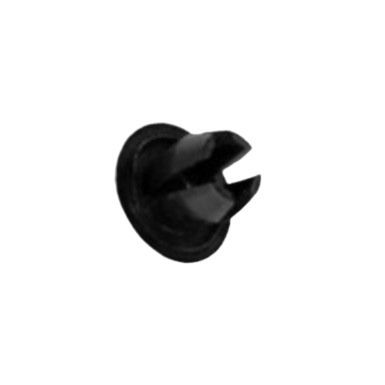

Round plug KHP series

circularcylindricalpush-in

How to use our Plastic Hole Plugs?
Plastic hole plugs from the KHP series are designed for simple press-fit installation into drilled or punched panel openings. They conceal screw heads, nuts and raw holes while providing a sealing barrier against dust and liquid ingress. Intended for use on metal, plastic and composite panels where a clean finish and basic sealing are required.

Advantages

• Corrosion resistance: Polymer construction prevents corrosion issues at the closure point.
• Mechanical resistance: Retention and impact resistance suitable for assembly and handling; typical service temperature range −20°C to +85°C (material- and grade-dependent).
• Chemical resistance: Suitable against a broad range of chemicals depending on material selection.
• Aesthetic finish: Flush appearance to improve the visual finish of assemblies.
• Range and customization: Available in PA66 grades for increased strength, with multiple colours, shapes and sizes for standard and custom requirements.

Applications

• Automotive: Bumpers, interior trim, seat components and other vehicle panels.
• Appliances: Covering fixings and openings on household equipment.
• HVAC: Sealing openings in ventilation, heating and air-conditioning panels.
• Metal construction & assembly: Protective closure for panels and machinery assemblies.

Product variants (examples)
SKU | Min. Panel thickness (mm) | Max. Panel thickness (mm) | Ø Hole Diameter | B | L | T | Quantity | Colour
KHP-107-0925B | 0.9 | 2.5 | 10.8 | 14.3 | 5.5 | 1.3 | 3000 | Black
KHP-100-0812N | 0.8 | 1.2 | 10.0 x 7.8 | 11 x 13 | 7.7 | 1.5 | 2000 | Natural
KHP-0511-3585B | 3.5 | 8.5 | 5.3 x 10.5 | 15.9 x 10.6 | 12.9 | 1.4 | 2500 | Black
KHP-87-0920B | 0.9 | 2.0 | 8.7 x 8.7 | 17.5 | 10.3 | 3.2 | 1000 | Black
KHP-80-0830B | 0.8 | 3.0 | 8.0 | 14.0 | 9.8 | 1.9 | 1500 | Black
KHP-50-0816W | 0.8 | 1.6 | 5.0 | 8.7 | 5.7 | 2.0 | 5000 | White
KHP-50-0816R | 0.8 | 1.6 | 5.0 | 8.7 | 5.7 | 2.0 | 5000 | Red
KHP-50-0816N | 0.8 | 1.6 | 5.0 | 8.7 | 5.7 | 2.0 | 5000 | Natural
KHP-50-0816B | 0.8 | 1.6 | 5.0 | 8.7 | 5.7 | 2.0 | 5000 | Black
KHP-45-0840N | 0.8 | 4.0 | 4.5 | 8.0 | 5.9 | 0.9 | 6000 | Natural

Measurements
All dimensions are expressed in millimetres (mm).

Technical specifications

• Material options: PA66 grades (for higher strength); other materials in the range include PA6, PP, PC, PUR, TPE and PA+elastomer (material depends on SKU).
• Typical temperature resistance: −20°C to +85°C (depends on material and application).
• Corrosion and chemical resistance: Varies by material; some parts offer salt spray resistance (check specific SKU data).
• Available sizes: Hole diameters from small PCB/metal hole sizes up to larger panel holes (examples in variants: 4.5 mm, 5.0 mm, 8.0 mm, 8.7 mm, 10.8 mm, etc.).
• Panel thickness compatibility: Examples shown from 0.8 mm up to 8.5 mm and higher depending on SKU.
• Packaging quantities: Supplied in bulk pack quantities per SKU (examples shown in variants).
• Typical sectors: Automotive, appliances, HVAC and metal construction/assembly; custom production possible on request.
