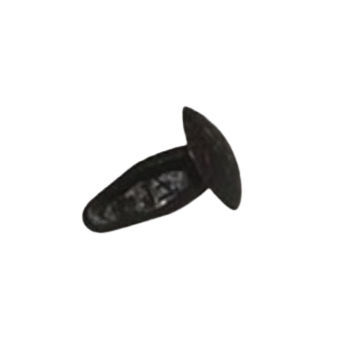

Metal clip KCC series

plasticPCPA6

Usage
Drive fasteners, also called canoe clips or plastic rivets, secure panels and trim by a press-fit manual installation and can be removed with pliers for maintenance. Suitable for automotive, appliance, HVAC and general industrial panel fastening.

Advantages

• Reusable: removable and reinstallable without damaging panel or fastener.
• Abrasion and corrosion resistance: selected variants specify validated corrosion performance.
• Electrical insulation: plastic variants provide dielectric separation for electrical applications.
• Temperature and impact resistance: typical service range approx. -20°C to +85°C depending on material grade.

Varieties

• Material grades: PA6, PA66, PA66 special grades, PC, PP, TPE, PUR and blends.
• Colors & finishes: natural, black, white and custom colors on request.
• Shapes & sizes: multiple head diameters, body geometries, hole diameters and lengths; standard and custom designs.

Applications

• Automotive: bumpers, interior/exterior trims, seats, body panels.
• Home appliances: appliance panels and covers.
• HVAC: ducts, housings and panel fixation.
• Construction & metal assemblies: panel fastening and light structural assemblies.

Product variants (examples)
SKU | Name | Min. panel thickness (mm) | Max. panel thickness (mm) | Type | Ø hole (mm) | D (mm) | H (mm) | L (mm) | Quantity | Colour
KCC-222-0850N | Drive Fastener – Canoe Clips | 0.8 | 5 | A | 6.3 | 22.2 | 23 | 14.3 | 1000 | Natural
KCC-222-0850B | Drive Fastener – Canoe Clips | 0.8 | 5 | A | 6.3 | 22.2 | 23 | 14.3 | 1000 | Black
KCC-200-60175B | Drive Fastener – Canoe Clips | 6 | 17.5 | C | 6.5 | 20 | 2 | 25 | 7500 | Black
KCC-165-2811W | Drive Fastener – Canoe Clips | 2.8 | n/a | C | 5.5 | 16.5 | 1.6 | 15.2 | 5000 | Black
KCC-165-2811N | Drive Fastener – Canoe Clips | 2.8 | n/a | C | 5.5 | 16.5 | 1.6 | 15.2 | 5000 | Natural
Note: The range includes numerous SKUs and dimensional variants covering hole diameters, panel thicknesses and head/body geometries; table shows representative entries.

Measurements
Measurements are expressed in millimetres (mm).

Technical specifications

• Materials: plastic variants (PA6, PA66, PA66 special grades, PC, PP, TPE, PUR) and selected metal designs where applicable.
• Service temperature: approx. -20°C to +85°C depending on material grade.
• Electrical insulation: inherent for plastic variants.
• Corrosion resistance: selected variants specify resistance levels (e.g. salt spray performance).
• Dimensional ranges: panel thickness from ~0.3 mm up to ~40 mm; hole diameters from ~2.8 mm up to ~19 mm depending on model.
• Packaging: available in multiple pack quantities (e.g. 100, 1000, 2000, 5000, 7500).
• Installation: press-fit manual installation; removable with pliers for maintenance (reusable design).
