Centrifugal pump STREAMLINE PRO® 50

waterwith electric motorstationary

Product overview

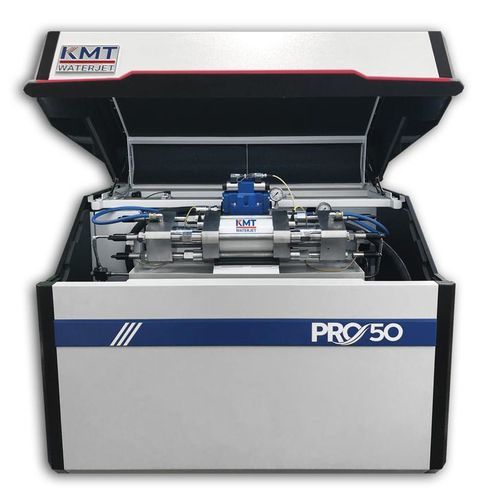

KMT STREAMLINE PRO® 50 HP waterjet pump designed to deliver high-pressure cutting capability at 90,000 PSI while targeting lower initial investment and optimized operating costs. The unit supports multi-head configurations and is compatible with industrial cutting systems and OEM integrations.

Key benefits

• High-pressure cutting at 90,000 PSI for increased cutting speed and improved precision compared with 60,000 PSI systems.
• Up to ~40% faster cutting throughput versus industry-standard 60,000 PSI/50 HP systems (manufacturer claims; results depend on material and application).
• Reduced abrasive consumption (manufacturer claims up to 50% less abrasive), lowering cost per part.
• Capable of cutting very thick materials—manufacturer cites cutting up to 12" for certain metals.
• Supports multiple cutting heads to raise capacity and reduce labor/cycle time.
• Engineered for lower capital outlay while maximizing uptime and profitability in production environments.

PRO pump horsepower options

• PRO series available in 125 HP, 60 HP and 50 HP variants.

Performance & operational notes

• Designed to increase production by reducing cut time per part; comparative performance depends on material, part geometry and setup.
• Improves edge quality and may reduce secondary machining compared with some laser and plasma processes.
• Flexible for a wide range of materials including metals, composites, stone and glass.
• Multiple-head configurations increase throughput and can lower unit labor costs.

Specification table
PRO 50 DESCRIPTION | IMPERIAL | METRIC
Motor Rating | 30 hp | 22 kW
Pressure Range (Deadhead) | 55,000 psi | 4.137 bar
Max. Flow Rate at Max. Pressure (60 Hz) | 0.62 gpm | 2.35 lpm
Length | 60.16" | 1,575 mm
Width | 42.17" | 1,165 mm
Height | 48.23" | 1,310 mm
Weight | 2,323 lbs | 1,053.7 kg
Max. Orifice Size | 0.011" | 0.28 mm


Additional details

• Positioned to deliver lower cost per part through higher pressure and optimized abrasive usage.
• Manufacturer materials include comparative data showing production improvements at 90,000 PSI versus 60,000 PSI for representative materials.
• Suitable for integration into complete cutting systems and OEM partner machines.

Technical specifications

• Series / Model: STREAMLINE PRO® (PRO series).
• Rated pump capability: marketed for 90,000 PSI operation (PRO series).
• This listing: PRO 50 (50 HP) — targeted for 90,000 PSI cutting.
• Motor rating (table): listed as 30 hp (22 kW).
• Deadhead pressure (table): 55,000 psi.
• Max flow at max pressure (60 Hz): 0.62 gpm / 2.35 lpm.
• Dimensions (L×W×H): 60.16" × 42.17" × 48.23" (1,575 × 1,165 × 1,310 mm).
• Weight: 2,323 lbs / 1,053.7 kg.
• Max orifice size: 0.011" (0.28 mm).
• Applications: heavy industrial cutting of metals, composites, stone, glass and other materials where high-pressure abrasive waterjet is suitable.
