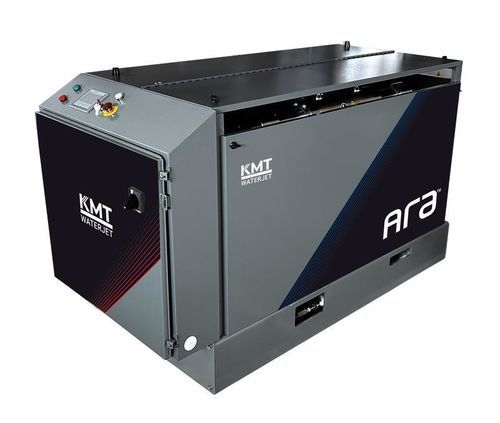

Piston pump ARA™

waterwith electric motorstationary

Overview
The Ara™ high-pressure pump is engineered to meet the operational, economic and reliability requirements of industrial waterjet cutting systems. By simplifying complex features and focusing on serviceability, Ara™ integrates KMT's proven SSEC intensifier design to provide dependable performance for single-head or multi-head setups.

Operational features

• Proven SSEC intensifier as the pump core for reliable pressure generation.
• Intelligent control with Siemens PLC and graphical display for status monitoring and fault diagnosis.
• Chassis and cover design allowing easy access to maintenance areas: removable doors and panels.
• Can operate as a standalone unit or be integrated into a centralized motion control system.
• Design focused on reliability, ease of operation and reduced maintenance requirements.

Additional information
Simplified cutting operation with field-proven technology suitable for a wide range of applications. The SSEC intensifier concept ensures high production availability and straightforward maintenance procedures.

SPECIFICATIONS (excerpt)
DESCRIPTION | IMPERIAL | METRIC
Motor power | 50 HP | 37 kW
Pressure range (deadhead) | 3,800 bar | 3,800 bar
Max. flow at max. pressure (60 Hz) | 1.0 gpm | 3.8 lpm
Length | 76″ | 2,006 mm
Width | 36″ | 914 mm
Height | 47″ | 1,183 mm
Weight | 2,449 lbs. | 1,111 kg
Max. nominal strokes per minute | 54 | 54

Technical features / specifications

• Model: KMT ARA™
• Rated pressure: 3,800 bar
• Motor power: 50 HP (37 kW)
• Max. flow at max. pressure (60 Hz): 1.0 gpm (3.8 lpm)
• Approx. dimensions (L x W x H): 2,006 mm x 914 mm x 1,183 mm
• Approx. weight: 1,111 kg
• Max. nominal strokes per minute: 54
• Intensifier: SSEC proven design
• Control: Siemens PLC with graphical interface for diagnostics and maintenance
• Design: chassis with easy maintenance access; standalone or integrable into centralized control
