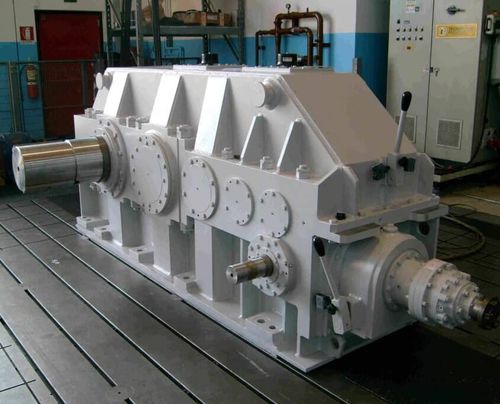

Spiral bevel gearbox parallel-shaft> 10 kNm200 - 500 Nm
Add to favorites
Compare this product
Characteristics
- Type
- spiral bevel
- Shaft orientation
- parallel-shaft
- Torque
- > 10 kNm, 200 - 500 Nm, 100 - 200 Nm, 1 - 2 kNm, 500 - 1000 Nm, 0.1 - 0.2 Nm, 5 - 10 Nm, 0.2 - 0.5 Nm, 20 - 50 Nm, 50 - 100 Nm, 0 - 0.1 Nm, 0.5 - 1 Nm, 10 - 20 Nm, 2 - 5 kNm, 1 - 5 Nm, 5 - 10 kNm
- Number of stages
- single-stage, two-stage, three-stage
- Other characteristics
- vertical, bar
Description
Main drive gearboxes for bar & wire rolling can provide perfect solutions for transmission mechanism of the production lines of bars, wires, and profiles. The gearboxes for bar and wire rolling are specially designed and optimized by alternatively arranging horizontal gearboxes and vertical gearboxes to ensure the shapes and sizes of rolling products.
The horizontal gearboxes are driven by parallel shafts, and the vertical gearboxes are driven by spiral bevel gears and parallel shafts.
The basic version gearboxes are with the structure of single shaft input and double shafts output or three shafts output. The output shafts are coupled with two or three rollers.
The gearboxes for bar and wire rolling have the features of compact structure, impact resistance, high load capacity, low noise, low vibration, steady operation.
TECHNICAL PARAMETERS:
Ratio: Up to 120
Torque: Up to 1200kN.m
Output Shaft Center Height: Up to 1100mm
Rollers Diameter: Φ350~Φ650mm
Ratio: Up to 120
Torque:Up to 1200kN.m
Rollers Diameter: Φ350~Φ650mm
Parameters: Customizable
APPLICATIONS:
Large, medium and small bar production lines
Wire and high-speed wire production lines
Sectional steel production lines
