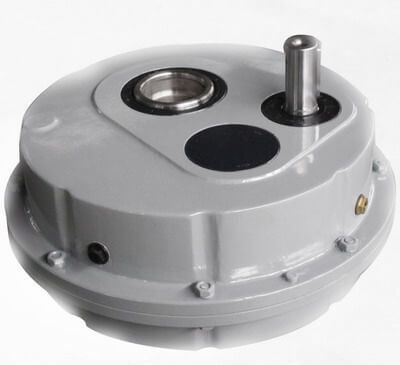

Helical gearbox ATA series

parallel-shafthollow-shaftsolid-shaft

FEATURES: 1. Absolute reliability and low maintenance for the quarry and mine applications 2. Sturdy ductile iron housing suitable for outdoor installation 3. Up to three optional output shaft bore diameters 4. Output shaft rotation in two directions: clockwise(Default) and counterclockwise(Customized) 5. Optional backstop for all models(Excluded ATA30) to prevent back driving in case of incline conveyors 6. Dimensions are same with Bonfiglioli(TA Series) 7. Double lips oil seal combines the functions of seal and dust-proof 8. Widely used in belt conveyor and pulley drive system Rated Power:1.1kW~193kW Rated Torque:180~17000N.m Gear Profile: Hardened Helical Gears Input Speed:1400, 900, 500r/min Output Speed:25~300r/min Ratio:5,7,10,…20,25,31 Installation Form: Hanging Shaft Mounted Backstop: Optional Applications: Material Handling Industry, Quarrying and Mining Industry Belt Conveyors Transmission Mechanism: Mining Equipment, Concrete Batching Plant, Stone Crushers, Sand Making Production Line Installation: Hanging Shaft Mounted With Torque Arm Belt Conveyor & Pulley Drive System: ATA, Electric Roller, Pulley, Electric Motor, Torque Arm Lubrication: Oil-bath and Splash Lubrication Cooling: Natural Cooling 1. Housing: Nodular Cast Iron(Ductile Iron) QT600 2. Gears Profile: Hardened Helical Gears 3. Gears Material: 20CrMnTi 4. Gears Processing: Carburizing, Quenching, Grinding 5. Gears Hardness: Surface Hardness: HRC58-62, Inner Hardness: HBS156-207 6. Gears Accuracy: 6 Class 7. Shafts Material: 40Cr 8. Input Configurations: Keyed Solid Shaft Input IEC Normalized Motor Flange 9. Output Configurations: Keyed Hollow Shaft Output 10. Oil Seal: TAIWAN SOG
