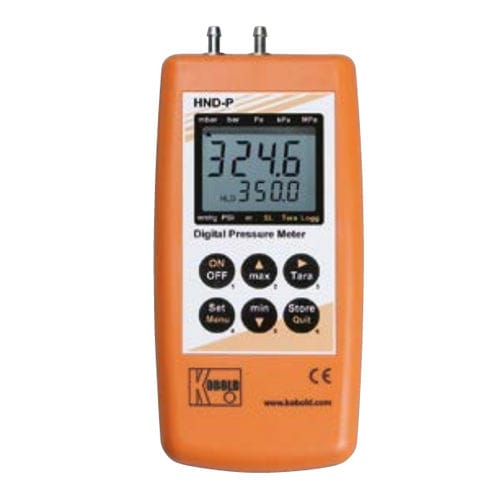

Absolute pressure gauge HND-P series
with LCD displayRS-2320-10 V

Absolute pressure gauge - HND-P series - KOBOLD INSTRUMENTATION - with LCD display / RS-232 / 0-10 V
Absolute pressure gauge - HND-P series - KOBOLD INSTRUMENTATION - with LCD display / RS-232 / 0-10 V
Absolute pressure gauge - HND-P series - KOBOLD INSTRUMENTATION - with LCD display / RS-232 / 0-10 V - image - 2
Absolute pressure gauge - HND-P series - KOBOLD INSTRUMENTATION - with LCD display / RS-232 / 0-10 V - image - 3
Absolute pressure gauge - HND-P series - KOBOLD INSTRUMENTATION - with LCD display / RS-232 / 0-10 V - image - 4
Add to favorites
Compare this product

Characteristics

Pressure type
absolute
Display
with LCD display
Communication
RS-232, 0-10 V
Protection level
IP65
Applications
process
Other characteristics
portable
Pressure

Max.: 1,000 bar
(14,503.77 psi)

Min.: 0 bar
(0 psi)

Precision

0.1 %

Process temperature

Max.: 70 °C
(158 °F)

Min.: -25 °C
(-13 °F)

Description

Nearly all measuring tasks for the determination of pressure can be performed with the HND-P series KOBOLD hand-held pressure measuring devices. Various housing designs make it possible to find the right housing with the appropriate characteristic for every application. In addition to the large selection of external pressure sensors up to max. 400 bar absolute, measuring devices with integrated sensors in the millibar range are also available.

Catalogs

HND-P105
HND-P105
8 Pages
