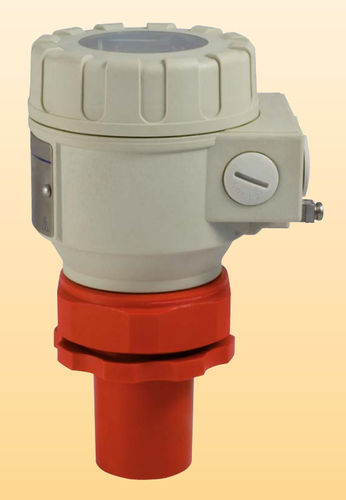

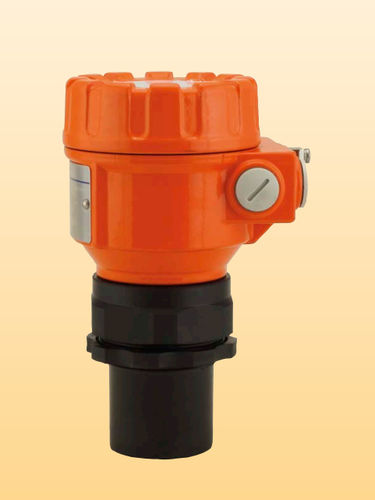

Ultrasonic level transmitter NUS-4 seriesfor solidsfor liquidswith digital display
Add to favorites
Compare this product
Characteristics
- Technology
- ultrasonic
- Medium
- for solids, for liquids
- Other characteristics
- with digital display
- Level range
Max.: 25 m
(82'00" )Min.: 10 m
(32'09" )- Process pressure
Max.: 3 bar
(43.51 psi)Min.: 0 bar
(0 psi)- Process temperature
Max.: 90 °C
(194 °F)Min.: 0 °C
(32 °F)
Description
Ultrasonic Level Meter NUS-4
Measuring range: liquids up to 25 m, solids up to 10 m
Connection: G 1 ½ , G2, 11/2 NPT, 2 NPT male
flange DN 80,125, 150, ANSI 3",5",6"
Material Connection: Polypropylene
Max. pressure: 3 bar abs., max. temperature: 90 °C
Accuracy: ±0,2 % of MW ±0,05 % of ME
Power supply:12-36 VDC, 2-wire
Output: 4-20 mA, Relay
LCD-indication and programming unit
