Crawler bulldozer D65 series

trackedoutdoorfor construction

Overview

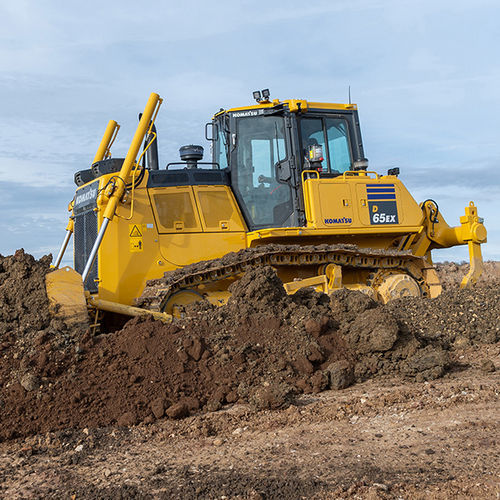

The Komatsu D65EX-18 / WX-18 / PX-18 combines the SIGMADOZER® blade with a highly efficient automatic transmission featuring torque converter lock-up, delivering strong productivity and fuel economy. Track options include Standard (EX), Low Ground Pressure (PX) and Wide (WX).

• Standard (EX), Low Ground Pressure (PX) and Wide (WX) track models
• First-class operator comfort
• Optimised work equipment
• Tough and reliable construction
• Advanced controls and monitoring

Power & transmission
The D65-18's automatic transmission automatically selects the optimal gear for dozing operations and includes a travel speed preset function to reduce cycle times and operator fatigue. Komatsu ECMV (Electronic Controlled Modulation Valves) ensure smooth, precisely timed gear changes to maintain efficient power transfer.

Operator comfort
Quiet, comfortable cab with hexagonal design and large tinted glass for panoramic visibility. High-capacity automatic climate control pressurises the cab to keep dust out, while sound-absorbent lining reduces interior noise.

Safety
Redesigned integrated ROPS/FOPS cab and well-positioned operator seat provide optimal left and right blade visibility for safe dozing and grading. Special fuel tank shape improves rear and ripper point sightlines.

Environment & engine
Komatsu EU Stage V engine provides ultra-low emissions while delivering dependable, efficient performance to reduce operating costs and environmental impact.

Maintenance & diagnostics

• Self-diagnostic multifunction monitor displays operating hours, engine RPM, fuel level and coolant temperature in real time
• Provides maintenance prompts (eg. filter replacement) and detailed diagnostic data for technicians without external tools

KOMTRAX and Komatsu CARE
KOMTRAX is Komatsu's wireless machine monitoring system for tracking location and performance. Komatsu CARE is the factory-scheduled maintenance program included with new machines, carried out by Komatsu-trained technicians using genuine parts.

Technical specifications

• Model: D65EX/WX/PX-18
• Engine power: 164 kW (220 HP)
• Blade capacity: 3.7 - 5.9 m³
• Blade size (INPAT): 4.1 x 1.24 m
• Operating weight: 22.1 - 23.4 t
• Blade type: SIGMADOZER®
• Transmission: automatic with torque converter lock-up and ECMV; travel speed preset function
• Engine emission stage: Komatsu EU Stage V
• Cab: hexagonal design, panoramic tinted glass, pressurised automatic climate control, sound-absorbent lining
• Maintenance: self-diagnostic multifunction monitor
• Telematics: KOMTRAX wireless monitoring
• Maintenance program: Komatsu CARE
