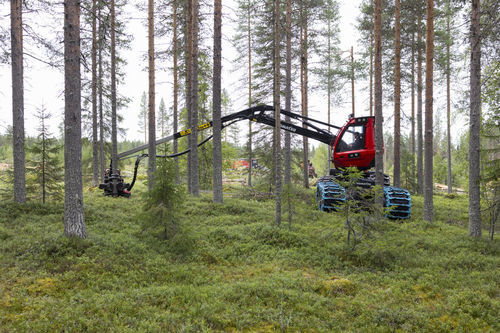

Rubber-tired forestry harvester 901XC-7

Overview
An agile thinning harvester engineered for steep and demanding terrain. The eight-wheel configuration provides exceptional stability and low ground pressure to minimise site impact while maintaining manoeuvrability.

Key features

• 8WD design for high stability and superior manoeuvrability in difficult terrain
• 200H crane with selectable reach: 10 m or 11 m
• Power: 190 kW @ 1850 rpm (EU Stage V, Tier 4F)
• Gross lifting torque: 197–198 kNm
• Max tractive effort: 189 kN
• Approx. weight from 20,710 kg for varied terrain applications
• Customisable with options to improve operator comfort and productivity

Specifications
Dimensions

• A. Width (with 600/45x24.5 tyres): 2,776 mm (9'1")
• B. Total length: 7,705 mm (25'2")
• C. Front axle to middle joint: 1,850 mm (6'1")
• D. Middle joint to rear axle: 2,100 mm (6'11")
• E. Transport height (straight cab): 3,820–3,880 mm depending on options; transport position approx. 3,810 mm
• F. Ground clearance at steering joint: 650 mm
• Note: Nominal dimensions may vary with production tolerances and equipment choices.

Weight

• Approximate weight: From 20,710 kg (45,658 lb) depending on configuration

Engine

• Type: AGCO Power 75FSTN-D5, 6-cylinder diesel with turbo and intercooler
• Displacement: 7.5 l
• Power: 190 kW @ 1850 rpm (EU Stage V, Tier 4F)
• Torque: 1,130 Nm @ 1,500 rpm
• Fuel tank: 415 l

Boom

• Model / reach: 200H — 10 m or 11 m
• Gross lifting torque: 198 kNm
• Gross slewing torque: 43 kNm

Heads

• Available harvesting heads: S82, S92, C93, C124

Hydraulic system

• Flow: 367.5 l/min @ 1,470 rpm
• System pressure: 280 bar

Electrical system

• Voltage: 24 V
• Battery capacity: 2 × 185 Ah
• Generator: 200 A

Transmission

• Driving speed: 0–25 km/h (0–15.6 mph)
• Max tractive effort: 189 kN

Notes

• Specifications describe possible equipment; standard vs optional items depend on the chosen configuration. Weights and dimensions are indicative and subject to change without notice.

Technical data

• Model: 901XC-7
• Brand: Komatsu
• Engine: AGCO Power 75FSTN-D5, 6-cylinder diesel, turbo + intercooler
• Power: 190 kW @ 1850 rpm (EU Stage V, Tier 4F)
• Torque: 1,130 Nm @ 1,500 rpm
• Displacement: 7.5 l
• Fuel tank: 415 l
• Boom (200H) reach: 10 m / 11 m
• Gross lifting torque (boom): 198 kNm
• Hydraulic flow: 367.5 l/min @ 1,470 rpm
• Hydraulic pressure: 280 bar
• Electrical: 24 V, 2 × 185 Ah, 200 A generator
• Driving speed: 0–25 km/h
• Max tractive effort: 189 kN
• Approx. weight: From 20,710 kg
