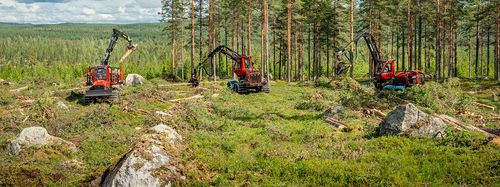

Wheeled forestry harvester 951XC-2

Overview
Productive final logging harvester with excellent climbing characteristics. Our largest eight-wheeled harvester is a stable and powerful machine, developed especially for harvesting in steep and challenging terrain. Hub reductions, the compact design and a large work area are just a few of the advantages.

Key features

• The 951XC produces high tractive force for its size, enabling it to maintain a high speed even in difficult conditions
• 280H crane with 10.3 / 11 m reach
• Choose from a range of options to customise your machine and make your working day even more comfortable and productive
• Power: 250 kW @ 1 850 rpm (EU Stage V, Tier 4F)
• Gross lifting torque: 285 kNm
• Max tractive effort: 243 kN
• Weight: From 23,775 kg

Dimensions
A. Width: With 710/55x26.5" tyres: 2980 mm (9'9")
B. Length, total: 8005 mm
C. Length, front axle to middle joint: 1930 mm (6'4")
D. Length, middle joint to rear axle: 2150 mm (7'1")
E. Transport height: Straight cab: 3960–4015 mm (depending on options). Transport position (cab max rear tilt, crane forward, light ramp tilted): 3940 mm
F. Ground clearance at steering joint: 710 mm
Note: Stated dimensions are nominal and may vary slightly depending on production tolerances and choice of equipment.

Engine
Type: AGCO Power 75FSTN-D5, 6-cylinder diesel engine with turbo and intercooler
Stroke volume: 7.5 l (1.98 gal)
Power: 250 kW @ 1 850 rpm (EU Stage V, Tier 4F)
Torque: 1 450 Nm @ 1 500 rpm
Fuel tank: 466 l

Boom
Model and reach: 280H: 10.3 / 11 m (33'9.5" / 36'1")
Gross lifting torque: 285 kNm (210,205 lbf-ft)
Gross slewing torque: 60 kNm (44,253 lbf-ft)

Heads

• Available heads: C124
• S132
• C144
• S172
• C164
• 370E
• S162E

Hydraulic system
Flow: 485 l/min @ 1470 rpm
System pressure: 280 bar

Electrical system
Voltage: 24 V
Battery capacity: 2 x 185 Ah
Generator: 200 A

Transmission
Driving speed: 0 - approx. 25 km/h (15.6 mph)
Tractive force: 243 kN (54,626 lbf)

Notes
The specifications describe possible equipment, not which equipment is standard or optional. Standard and optional equipment varies between countries. Weights are based on the equipment specified in the basic specification. Specifications and designs are subject to alteration without prior notice.

Technical specifications

• Brand: Komatsu Forest
• Model: 951XC-2
• Engine: AGCO Power 75FSTN-D5, 6-cylinder diesel with turbo and intercooler
• Power: 250 kW @ 1 850 rpm (EU Stage V, Tier 4F)
• Torque: 1 450 Nm @ 1 500 rpm
• Stroke volume: 7.5 l
• Fuel tank capacity: 466 l
• Boom: 280H, reach 10.3 / 11 m
• Hydraulic flow: 485 l/min @ 1470 rpm
• Hydraulic system pressure: 280 bar
• Max tractive effort: 243 kN
• Driving speed: up to approx. 25 km/h
• Approx. weight: from 23,775 kg
• Electrical: 24 V, 2 x 185 Ah batteries, 200 A generator
