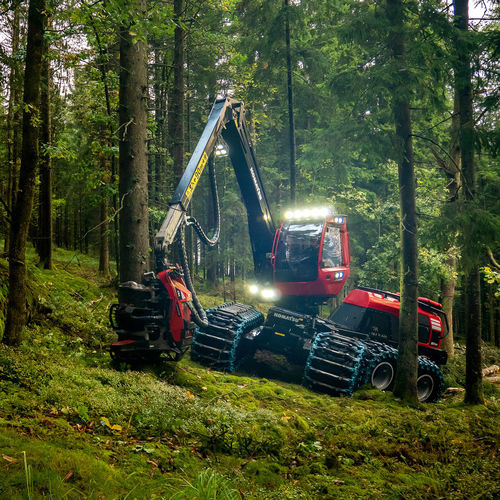

Wheeled forestry harvester 951XC

Product overview
Our largest eight-wheeled harvester is a stable machine developed for harvesting in steep and demanding terrain. Hub reductions, compact design and a large working area are among the primary characteristics that support high productivity and machine stability.

Highlights

• Power: 214 kW DIN at 1850 rpm (EU Stage V / Tier 4F)
• Gross lifting torque: 275 kNm (202,830 lbf-ft)
• Tractive force: 242 kN (54,400 lbf)
• Weight (approx.): From 23,275 kg (51,300 lb)

Tailored to your working day

• Two crane length options: 8.7 m or 10.3 m
• Multiple harvester head models available to match assignment requirements
• High tractive force for its size, enabling maintained speed in difficult conditions

The right head for every assignment
Selection of harvester head depends on forest conditions and task. Available heads for the 951XC include:

• C124
• S132
• C144
• S172
• C164

Cab & operator options
The cab is ergonomically designed with a range of optional equipment to improve operator comfort and efficiency (examples):

• Sequence control for EME and mini joysticks
• Interior floor lighting and adjustable reading lamp
• Radio with Bluetooth and hands-free support
• Food box heater/cooler, sun shades, removable floor mat

Hood guard options
Optional engine hood guard offered in standard and reinforced versions. The reinforced guard mounts to the frame, uses larger piping and can be split for hood access. When a hood guard is fitted, additional fire safety and tool equipment can be installed (examples): two 9 kg fire extinguishers, rake, spade, digging bar.

Hydraulics / 3PS
The 3PS hydraulic system enables multiple simultaneous operations with efficient use of hydraulic power. System components are engaged as required to reduce energy losses and fuel consumption, particularly useful during final logging operations.

Smart Forestry
Smart Forestry comprises digital services for safety, fleet and machine tracking, collaboration and decision support. Precision features include high-accuracy satellite positioning, digital fences and stem code visualisation.

Dimensions (nominal)
A. Width with 710/55x26.5" tyres: 2980 mm (9'9")
B. Total length: 8015 mm (26'4")
C. Front axle to middle joint: 1930 mm (6'4")
D. Middle joint to rear axle: 2150 mm (7'1")
E. Transport height: 3980 mm (with max backwards tilted cab 3940 mm) (with tire compression)
F. Ground clearance at steering joint: 708 mm (2'3")
Note: Stated dimensions are nominal and may vary slightly depending on production tolerances and choice of equipment.

Technical specifications

• Model (commercial name): 951XC
• Manufacturer / Brand: Komatsu
• Approximate weight: From 23,275 kg (51,300 lb)
• Engine type: AGCO Power, 6-cylinder diesel with turbo and intercooler (EU Stage V, Tier 4F and Stage II)
• Displacement: 7.4 l (1.95 gal)
• Power: EU Stage V / Tier 4F: 214 kW DIN at 1,850 rpm; Stage II: 210 kW DIN at 1,850 rpm
• Torque: 1,280 Nm at 1,500 rpm
• Fuel tank capacity: 466 l (123 gal)
• Boom model and reach: 270H — 8.7 m (28'7"), 10.3 m (33'10")
• Gross lifting torque: 275 kNm (202,830 lbf-ft)
• Gross slewing torque: 60 kNm (44,253 lbf-ft)
• Hydraulic flow: 528 l/min (139 gal/min) at 1,600 rpm
• Hydraulic system pressure: 280 bar
• Electrical system voltage: 24 V
• Battery capacity: 2 x 180 Ah
• Generator: 2 x 100 A
• Driving speed: 0 - approx. 21 km/h (13 mph)
• Tractive force: 242 kN (54,400 lbf)
