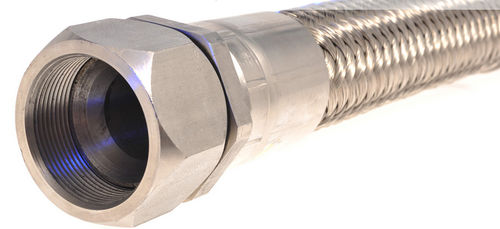

PTFE hose T seriesfor waterfor chemical productsfoodstuff
Add to favorites
Compare this product
Characteristics
- Use
- for water, for chemical products, foodstuff, for fuel, for hydrocarbons
- Material
- PTFE
- Applications
- high-pressure, heavy-duty
- Other characteristics
- smooth, anti-static, crush-resistant, stainless steel-braided, PTFE inner liner, spiral wire
- Inner diameter
Max.: 22.54 mm
(0.887 in)Min.: 5.84 mm
(0.23 in)- Outer diameter
Max.: 33.66 mm
(1.325 in)Min.: 12.32 mm
(0.485 in)- Pressure
Max.: 414 bar
(6,004.562 psi)Min.: 276 bar
(4,003.042 psi)- Temperature
Max.: 260 °C
(500 °F)Min.: -60 °C
(-76 °F)
Description
The heavy-weight high pressure hose, ideal for impulse and cycling applications, with a smoothbore conductive liner and multiple spiral braids this hose passes where most hoses fail. (T1710 hose has a post sintered PTFE liner for gas applications).
- Applications:
High shock/vibration applications, ideal for pressure impulses and cycling such as reaction injection moulding
- Inner layer construction:
Antistatic smoothbore PTFE tube - PTFE according to “ISO12086, Part 1.PTFE-E.P.D.M 1.6.1.C.E.4_12”
- Outer Layer construction:
Up to 6 wire High tensile 304 maypole wound Stainless
- Temperature range:
-60°C to +260°C (-76°F to +500°F)
- Other:
High pressure antistatic smoothbore PTFE tube with maypole and spiral wound high tensile 304 stainless steel braids
