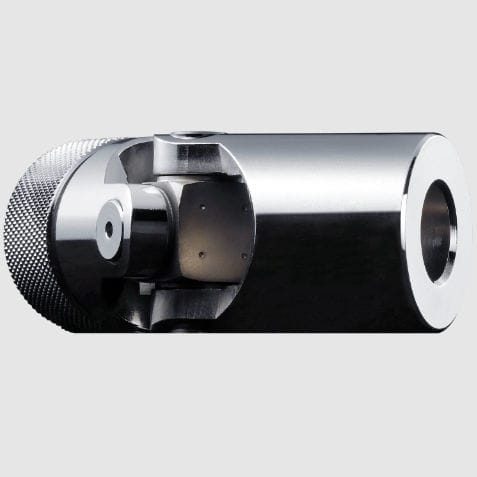

Single universal joint GR

precisionwith needle bearing

The plain bearings of precision joint type GR limit the maximum permissible speed to 1,000 rpm, the needle bearings of precision joint type H7 limit the maximum permissible speed to 4,000 rpm. The maximum diffraction angle per joint is 45°. In addition the precision joints type GR and HR have a quick lock allowing to separate them from the shaft without using any tool within short term. This bearing allows the joints to compensate for significantly larger angular displacements compared to other coupling types. Double joints that have two bearings are able to offset radial displacement in addition. Features Precision joint with quick lock acc. to DIN 808 Type GR: Precision single joint with plain bearing and quick lock Type HR: Precision single joint with needle bearing and quick lock
