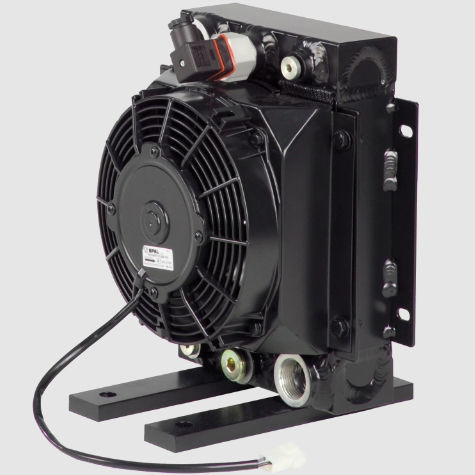

Air cooler OAC seriesliquidcompacthigh-performance
Add to favorites
Compare this product
Characteristics
- Material
- air, liquid
- Other characteristics
- compact, high-performance, pressure, drive
- Power
Max.: 350 kW
Min.: 2 kW
- Flow rate
Max.: 750 l/min
(198.129 us gal/min)Min.: 5 l/min
(1.321 us gal/min)- Pressure
14 bar, 21 bar, 26 bar
(203.053 psi, 304.579 psi, 377.098 psi)
Description
Compact and high-performance oil cooler type OAC standard. Standard fan drive consisting of 230/400V motor or 12V/24V fan or hydraulic fan drive. In addition available with 60 Hz frequency.
Besides the "marine" and "ATEX" versions, this series is available in combination with thermal or pressure bypass valves as well. The cooling elements originate from our own production line in our cooler production plant located in Jiaxing, China.
Our compact and high-performance oil-air coolers are available in 14 sizes for cooling hydraulic and lubricating oils. The OAC oil-air cooler pumps the following media: hydraulic oil, gear oil, lubricating oil, motor oil, water glycol.
Features
Easy to service and good options of cleaning
Low sound pressure level
CE marking
Painting for salty environment/near shore (CDP + powder painting)
Pressure bypass 4 and 6 bars
Catalogs
No catalogs are available for this product.
See all of KTR‘s catalogsOther KTR products
Oil-air coolers
