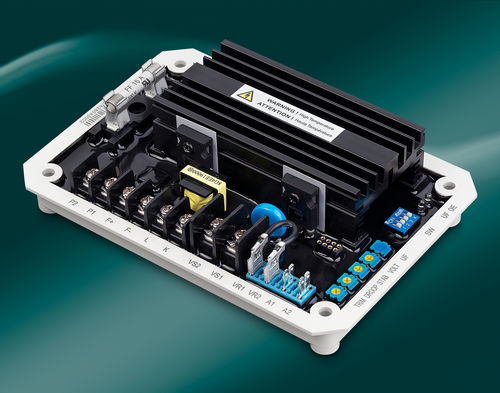

Automatic voltage regulator ADVR-16

single-phaseACDC

ADVR-16 Analog Digital 16Amp Voltage Regulator for Parallel Operation 16Amp digital AVR that can be used in parallel operation of Generator Sets. It's compatible with Caterpillar, SIEMENS, Khenkikian, Genaust, KATO, Marelli, BOKUK, ENGGA, Crompton Greaves AVRs. Features • Voltage regulation less than +/-0.5% • Suitable for brushless type generator sensing input 170 to 510 Vac • Can be used in parallel operation • 16 Adc current output • Suitable frequency 50/60 Hz • Inverse-time over excitation protection • O/E over excitation protection • Under frequency protection and soft start voltage ramping • Load CT current compensation, analog voltage input Specifications Sensing Input Voltage 170 to 510 Vac 1 phase 2 wire DIP switch selectable Frequency 50/60 Hz Power Input Voltage 60 to 300 Vac 1 phase 2 wire Excitation Output Voltage 220V 1 phase Current Continuous 63 Vdc 16A Max. 90 Vdc 20A for 10 seconds Resistance Min. 4 ohms External Voltage Adjustment Max. +/-5% with 2K ohms 1 watt potentiometer Voltage Regulation Less than +/-0.5% (with 4% engine governing) Build Up Voltage 5Vac 25Hz residual volts at power input terminal Static Power Dissipation Max. 4 watts CT Current Compensation Input 1A or 5A (DIP switch selectable) Analogue Voltage Input Max. +/-5 Vdc +/-10% @ +/-3 Vdc Under Frequency Protection 55 Hz @ 60 Hz (adjustable) 45 Hz @ 50 Hz (adjustable) Over Excitation Protection When excitation output > 40% Power Input, excitation output will shutdown after 10 sec Voltage Thermal Drift Less than 3% at temperature range -40 to +70 °C
